Manufacturer Part #
APT8020JFLL

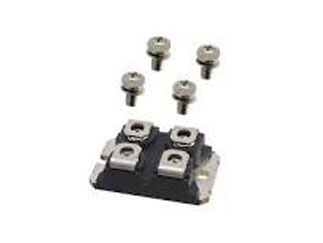

POWER MOS 7® N-Channel 800 V 220 mOhm 33 A 520 W Chassis Mount Mosfet - ISOTOP
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Bulk Package Style:ISOTOP Mounting Method:Chassis Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Microchip APT8020JFLL - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=APT8020JFLL&field4=Microchip&field18=https://p1apac.futureelectronics.com/fr/p/semiconductors--discretes--transistors--mosfets/apt8020jfll-microchip-6195181
Microchip APT8020JFLL - Technical Attributes
Attributes Table
| Product Status: | Active |
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 800V |
| Drain-Source On Resistance-Max: | 0.22Ω |
| Qg Gate Charge: | 27nC |
| Gate-Source Voltage-Max [Vgss]: | 30V |
| Drain Current: | 33A |
| Turn-on Delay Time: | 12ns |
| Turn-off Delay Time: | 39ns |
| Rise Time: | 14ns |
| Fall Time: | 10ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 5V |
| Input Capacitance: | 5200pF |
| Series: | POWER MOS 7® |
| Package Style: | ISOTOP |
| Mounting Method: | Chassis Mount |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
26 Weeks
Quantity
Unit Price
1
$41.52
4
$40.97
15
$40.44
30
$40.17
75+
$39.55
Product Variant Information section
Available Packaging
Package Qty:
1 per Bulk
Package Style:
ISOTOP
Mounting Method:
Chassis Mount
