Manufacturer Part #

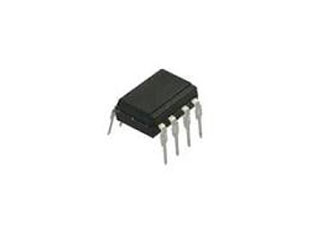

6N136-L
Single Channel High Speed 1MB/s Through Hole Transistor Optocoupler - DIP-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | LITEON | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2 per Cut Tape Package Style:DIP-8 Mounting Method:Through Hole | ||||||||||
| Date Code: | 2244 | ||||||||||
Product Specification Section
LITEON 6N136-L - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=6N136-L&field4=LITEON&field18=https://p1emea.futureelectronics.com/fr/p/semiconductors--optoelectronics--isolation-components-optocouplers/6n136-l-liteon-1169285
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=6N136-L&field4=LITEON&field18=https://p1emea.futureelectronics.com/fr/p/semiconductors--optoelectronics--isolation-components-optocouplers/6n136-l-liteon-1169285
LITEON 6N136-L - Technical Attributes
Attributes Table
| No of Channels: | 1 |
| Isolation Voltage-RMS: | 5000V |
| Output Voltage-Max: | 20V |
| Directional: | Uni-Directional |
| Propagation Delay: | 0.4µs |
| Forward Voltage: | 1.4V |
| Reverse Voltage-Max [Vrrm]: | 5V |
| Average Forward Current-Max: | 25mA |
| Power Dissipation: | 0.1W |
| Output Type: | Open Collector |
| CTR-Min: | 19% |
| Operating Temp-Max: | 85°C |
| Storage Temperature Range: | -55°C to +125°C |
| Package Style: | DIP-8 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
50
Germany:
50
On Order:
0
Factory Lead Time:
18 Weeks
Quantity
Unit Price
1+
$0.184
Product Variant Information section
Available Packaging
Package Qty:
2 per Cut Tape
Package Style:
DIP-8
Mounting Method:
Through Hole
