Manufacturer Part #
SDCH1V6045-4R7M-R

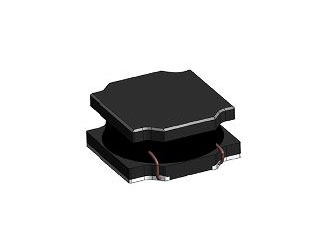

SDCH1V6045,4.7nH,6.7A,2PADS,SMT INDUCTOR
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Eaton | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1500 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Eaton SDCH1V6045-4R7M-R - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SDCH1V6045-4R7M-R&field4=Eaton&field18=https://p1na.futureelectronics.com/it/p/passives--inductors--wirewound-inductors/sdch1v6045-4r7m-r-eaton-5194508
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SDCH1V6045-4R7M-R&field4=Eaton&field18=https://p1na.futureelectronics.com/it/p/passives--inductors--wirewound-inductors/sdch1v6045-4r7m-r-eaton-5194508
Eaton SDCH1V6045-4R7M-R - Technical Attributes
Attributes Table
| Type: | Shielded |
| Inductance-Nom: | 4.7µH |
| Rated Current-Max: | 3.6A |
| Tolerance (%): | ±20% |
| DC Resistance: | 31mΩ |
| Core Material: | Ferrite |
| Test Frequency: | 100kHz |
| Operating Temp Range: | -40°C to +125°C |
| Storage Temperature Range: | -40°C to +125°C |
| No of Terminals: | 2 |
| Dimension: | L 6mm x W 6mm x H 4.5mm |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
13 Weeks
Quantity
Unit Price
1,500
$0.0802
3,000
$0.0788
6,000
$0.0774
7,500
$0.077
22,500+
$0.0743
Product Variant Information section
Available Packaging
Package Qty:
1500 per Reel
Mounting Method:
Surface Mount
