Manufacturer Part #
VNB35NV04TR-E
VNB35NV04 Series Single 24 mOhm Surface Mount Low Side Driver - TO-263-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Package Style:TO-263-3 (D2PAK) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics VNB35NV04TR-E - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=VNB35NV04TR-E&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/it/p/semiconductors--analog--drivers--mosfet-igbt-drivers/vnb35nv04tr-e-stmicroelectronics-1184850
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=VNB35NV04TR-E&field4=STMicroelectronics&field18=https://p1emea.futureelectronics.com/it/p/semiconductors--analog--drivers--mosfet-igbt-drivers/vnb35nv04tr-e-stmicroelectronics-1184850
STMicroelectronics VNB35NV04TR-E - Technical Attributes
Attributes Table
| Configuration: | Low Side |
| No of Outputs: | Single |
| On-state Resistance-Max: | 24mΩ |
| Output Impedance: | 13mΩ |
| Peak Output Current: | 45A |
| Rated Power Dissipation: | 125W |
| Turn-off Delay Time: | 34µs |
| Turn-on Delay Time: | 4µs |
| Rise Time: | 100µs |
| Fall Time: | 110µs |
| Operating Temp Range: | -55°C to +150°C |

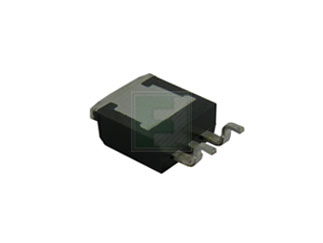

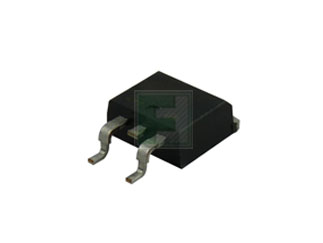

| Package Style: | TO-263-3 (D2PAK) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
Germany:
0
On Order:
0
Factory Lead Time:
13 Weeks
Quantity
Unit Price
1,000
$2.13
2,000
$2.12
3,000
$2.11
4,000+
$2.09
Product Variant Information section
Available Packaging
Package Qty:
1000 per Reel
Package Style:
TO-263-3 (D2PAK)
Mounting Method:
Surface Mount
