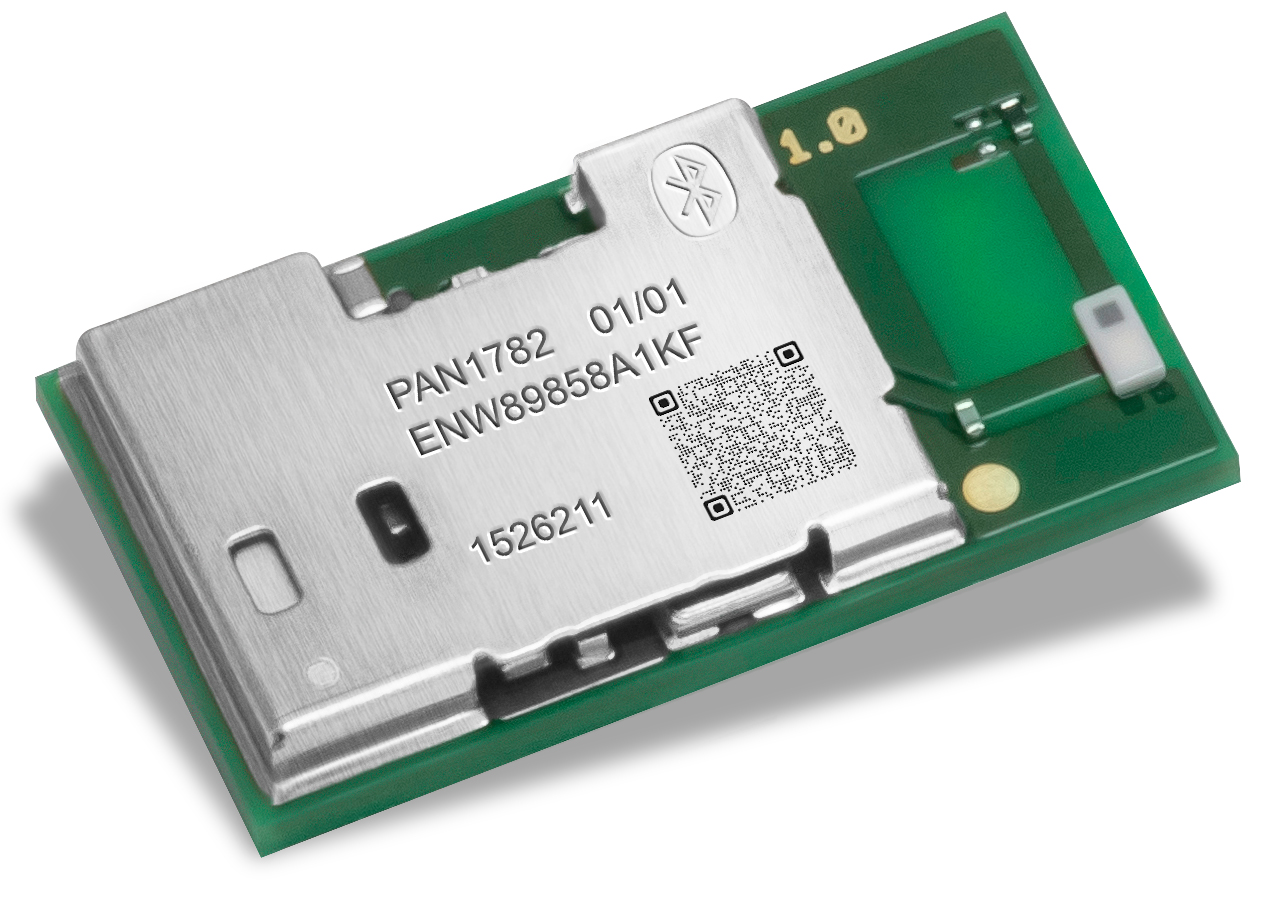

Panasonic Industry PAN1782 Bluetooth® Low Energy RF Module

Panasonic Industry’s Bluetooth® 5.1 LE RF module featuring angle of arrival and angle of departure direction finding

Panasonic Industry's PAN1782 Series Bluetooth® 5.1 Low Energy Module is based on the Nordic nRF52833 single-chip controller, allowing for much larger amounts of data broadcasted in connectionless scenarios. Bluetooth® 5.1 features a higher symbol rate of 2 Mbps using the high-speed LE 2M PHY or a significantly longer range using the LE Coded PHY at 500 kb/s or 125 kb/s. The new channel selection algorithm, CSA#2, improves performance in high-interference environments.

The output power of up to 8 dBm and the high sensitivity of the nRF52833, combined with the LE Coded PHY, make the module very attractive in applications with long-range requirements. The PAN1782 Series includes up to 16 shared general purpose I/O’s (GPIO), with up to 4× SPI, 2× I²C, 2× UART, 8CH ADC, COMP, QDEC, NFC-A, 4× PWM, nRESET but limited by the number of available GPIO ports.

In addition, the ultra-low current consumption of the PAN1782 Series makes the module an ideal choice for battery-powered devices. With the ARM® Cortex®-M4 processor, 128 kB RAM, and the built-in 512 kB flash memory, the PAN1782 Series can easily be used in standalone mode, eliminating the need for an external processor, saving complexity, space, and cost.

Using Bluetooth, the PAN1782 Series supports angle of arrival (AOA) and angle of departure (AOD) direction finding, suitable for asset tracking and inventory management. It also features a 128-bit AES/ECB/CCM/AAR co-processor for on-the-fly packet encryption. This module supports Type 2 Near Field Communication or NFC-A for simplified pairing and payment solutions with an external antenna.

PAN1782 General Features and Benefits

  • Pin Compatible Hardware Drop-In Replacement for PAN1026A, PAN1762, and PAN1781
  • Nordic nRF52833 featuring ARM® Cortex®-M4 processor running with 64 MHz
  • Bluetooth® 5.1 LE, Including LE 2M and LE Coded PHY
  • Embedded 512 kB Flash Memory and 128 kB Internal RAM
  • 128-bit AES/ECB/CCM/AAR Co-processor
  • Up to 16 General Purpose I/O’s (GPIO)
  • USB 2.0 Full-Speed Device Interface
  • Built-in Temperature Sensor
  • FCC, Industry Canada, and EU RED Certified

PAN1782 Suitable Applications

  • Industrial IoT/Smart Mesh Network
  • Smart Home/Building
  • Asset Tracking
  • Medical Devices/Patient Monitoring

PAN1782 Additional Technical Characteristics

  • Surface Mount Type Dimensions: 15.6 mm × 8.7 mm × 2 mm
  • Typical max. Output power: 8 dBm, Configurable from -20 dBm in 4 dB steps and -40 dBm in Whisper Mode
  • Sensitivity: -96 dBm at 1 Mb/s and -103 dBm at 125 kb/s
  • Typical Current Consumption: 4.9 mA in Tx (at 0 dBm) and 4.7 mA in Rx Mode
  • Typical Current Consumption: 0.6 μA in System OFF Mode, 1.5 μA with RTC Wake Up
  • On-module DC-DC and LDO Regulators with Automated Low Current Modes
  • Voltage Range: 1.7 V to 5.5 V
  • Temperature Range: -40°C to 85°C

PAN1782 Block Diagram

Panasonic — PAN1782 Series Block Diagram



Panasonic Industry PAN1782 Evaluation Board

ENW89858AXKF - PAN1782 Series Evaluation Board (Arduino Form Factor)

The PAN1782 Series Evaluation Board features a PAN1782 Bluetooth® Low Energy Module based on the Nordic Semiconductor nRF52833 single-chip controller.

Easily access all the different module interfaces like USB, UART, GPIOs, current measurement pins, and Segger J-Link on-board debugger, which makes the evaluation board ideally suited for evaluating the module and rapid prototyping of products. The PAN1782 Series Evaluation Board allows easy and fast connection to a PC through a USB to UART converter. Application functions can be tested quickly and easily without much wiring effort. All GPIOs are led out via pin headers, and the Arduino form factor allows the connection of shields available on the mass market.

Panasonic — PAN1782 Series Evaluation Board

PAN1782 Series Evaluation Board Feature

  • PAN1782 module with improved APPROTECT
  • Segger J-Link On-board Debugger
  • FTDI UART-USB Converter
  • 2 User Buttons
  • 2 User LEDs
  • Native USB interface
  • NFC Interface
  • Access to all GPIOs
  • Arduino Form Factor
