Manufacturer Part #
1N6276A-E3/51

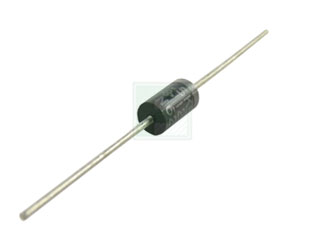

1N6276A Series 22.5V 1500 W Through Hole TransZorb® Transient Voltage Suppressor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Vishay | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1500 per Bag Package Style:AXIAL Mounting Method:Through Hole | ||||||||||
| Date Code: | 2305 | ||||||||||
Product Specification Section
Vishay 1N6276A-E3/51 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Obsolete
Obsolete
Vishay 1N6276A-E3/51 - Technical Attributes
Attributes Table
| Breakdown Voltage-Min: | 15.2V |
| Clamping Voltage-Max: | 22.5V |
| Directional: | Uni-Directional |
| Power Dissipation: | 1500W |
| Peak Output Current: | 66.7A |
| Reverse Leakage Current: | 1µA |
| Peak Power: | 1500W |
| Test Current: | 1mA |
| Standoff Voltage: | 13.6V |
| Forward Voltage: | 3.5V |
| Operating Temp Range: | -55°C to +175°C |
| Storage Temperature Range: | -55°C to +175°C |
| Capacitance: | 1080pF |
| Breakdown Voltage-Max: | 16.8V |
| Package Style: | AXIAL |
| Mounting Method: | Through Hole |
Features & Applications
Pricing Section
Global Stock:
92
USA:
92
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
1
$0.505
50
$0.495
200
$0.485
500
$0.475
2,000+
$0.45
Product Variant Information section
Available Packaging
Package Qty:
1500 per Bag
Package Style:
AXIAL
Mounting Method:
Through Hole
