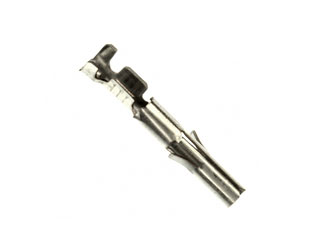

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

350689-3

Universal Mate-N-Lok Pre-Tin 24-18 AWG Socket Contact

350689-3 Datasheet 350689-3 Documentation Application Note Package Drawing 3D View
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 10000 per Bag Mounting Method: Wire Mount
Date Code:	2430

TE Connectivity 350689-3 - Technical Attributes

Type:	Contact
Contact Termination:	Female/Socket Crimp
No of Positions:	1
Wire Gauge:	AWG 24-18
Contact Material:	Phosphor Bronze
Contact Plating:	Tin
Operating Temp Range:	-55°C to +105°C
Mounting Method:	Wire Mount

Features & Applications

The 350689-3 is a Universal Mate-N-Lok Pre-Tin 24-18 AWG Socket Contact.

The AMP Soft Shell Pin and Socket connectors provide a highly reliable and economic means of grouping multiple-lead connections in today's computer, computer/peripheral equipment, business machines, entertainment centers, appliances and other sophisticated commercial equipment. The electrical connector is an integral component in these applications.

Features:

Product Type = Contact
Product Line = Universal MATE-N-LOK
Insulation Diameter (mm [in]) = 1.02-2.54 [.040-.100]
Current Rating (A) = 19
Voltage (VAC) = 600
Termination Method = Crimp
Solder Tail Contact Plating = Pre-Tin
Contact Type = Socket
Contact Termination Type = Crimp
Contact Base Material = Phosphor Bronze
