Manufacturer Part #
06FMN-BTK-A(LF)(SN)

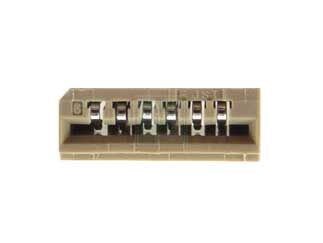

FMN Series 6 Position 1 mm Top Entry Through-Hole FFC Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2700 per Tray | ||||||||||
| Date Code: | |||||||||||
JST 06FMN-BTK-A(LF)(SN) - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=06FMN-BTK-A(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/1478346
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=06FMN-BTK-A(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/1478346
JST 06FMN-BTK-A(LF)(SN) - Technical Attributes
| Flat Flex Type: | FFC |
| No of Positions: | 6 |
| Pitch: | 1 mm |
| Style/Orientation: | Receptacle |
| Termination: | Solder |
| Current Rating: | 0.5A |
| Contact Plating: | Tin |
| Material: | Polybutylene Terephthalate |
| Insulation Resistance: | 500MΩ |
| Voltage Rating: | 50V |
| Contact Material: | Phosphor Bronze |
| Operating Temp Range: | -25°C to +85°C |
Features & Applications
The FMN connector by JST is a series of connectors designed for Flexible Flat Cable (FFC) connection. The FMN series of connectors, takes ½ the insertion force as the standard FM series but retains stable contact performance when subject to environmental and mechanical stresses.
06FMN-BTK-A/LF/SN is a 6 position Through-hole Top entry connector. There are no slides or levers on this reduced insertion force connector.
Available Packaging
Package Qty:
2700 per Tray
