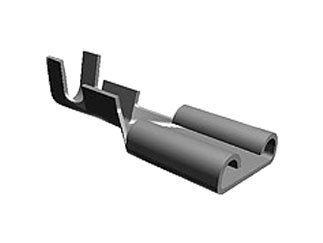

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

42617-2

Faston 20-16 AWG Non-Insulated Straight Receptacle Terminal

42617-2 Datasheet 42617-2 Documentation Application Note Product Drawing
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 40000 per Reel
Date Code:

TE Connectivity 42617-2 - Technical Attributes

Size:	Tab 0.187" x 0.020"
Style:	Non-Insulated
Type:	Receptacle
Wire Gauge:	AWG 20-16

Features & Applications

The FASTON housings 20-16 Series is designed to be used with the FASTON terminal line. They come in sizes ranging from 6.35 [.250], 5.21 [.205], 4.75 [.187] and 2.79 [.110] and are available in multiple positions and configurations.

Included in this line are special connectors, including water valve connectors, Microswitch connectors, gas valve connectors, and various other special application connectors. Many of these housings are available in both V-2 and V-0 rated materials. Translucent plastic insulating sleeves are available for use with FASTON receptacles and flags.

Features:

Product Type = Terminal
Terminal Type = Receptacle
Mating Area Interface Dimensions (mm [in]) = 4.75 x 0.51 [.187 x .020]
Receptacle Style = Straight
Insulation Support = Insulation Support
Wire/Cable Type = Stranded
Insulation Diameter (mm [in]) = 2.29-3.30 [.090-.130]
Insertion Force = Normal
Material = Brass
Finish = Tin
Crimp Type = F-Crimp
