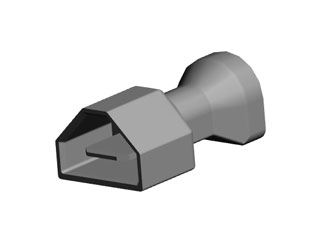

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

4-521098-2

.250 Series Faston Ultra-Fast 12-10 AWG Fully Insulated Straight Tab

4-521098-2 Datasheet 4-521098-2 Documentation Product Drawing 3D View Product Specification
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 4000 per Bag
Date Code:	1801

TE Connectivity 4-521098-2 - Technical Attributes

Size:	Tab 0.250" x 0.032"
Style:	Fully Insulated
Type:	Tab
Wire Gauge:	AWG 12-10

Features & Applications

The 4-521098-2 is a AWG 12-10 Faston Ultra-Fast (250) Fully Insulated Straight Tab Receptacle Connector.

The Ultra-Fast Fully Insulated FASTON Receptacle and Tab offers the advantage of a completely protected terminal and a wire crimp with comparable electromechanical performance to open barrel “F” crimp FASTON Terminals. The “User-Friendly” design combines easy mating with rounded corners. The .187 and .250 series receptacles incorporate a two-stage roll configuration and a cantilever mounted dimple which provides easy insertion and multiple independent points of contact for reduced tab interface resistance.

Features:

Terminal Type = Tab
Proprietary Name = Ultra-Fast
Mating Area Interface Dimensions (mm [in]) = 6.35 x 0.81 [.250 x .032]
Material = Brass
Insulation Diameter (mm [in]) = 8.13 [.320] Max.
Insulation Support = Non-Insulation Support
Finish = Tin
Wire/Cable Type = Regular Wire
Mount Angle = Straight
Wire Range (mm [AWG]) = 3.00-6.00² [12-10]
Tab Type = Wire Crimp
Fully Insulated = Fully Insulated
