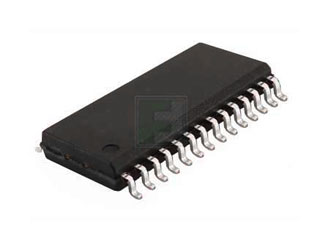

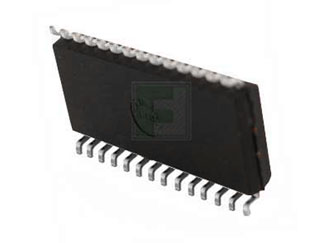

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

PIC32MX250F128B-I/SO

PIC32MX Series 128 kB Flash 32 kB RAM 40 MHz 32-Bit Microcontroller - SOIC-28

PIC32MX250F128B-I/SO Datasheet PIC32MX250F128B-I/SO Documentation Errata AN1373--Using PIC32 MCUs to Develop GSM/GPRS/GPS Solutions Application Note Programming Specification Product Map
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Microchip
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 27 per Tube Package Style: SOIC-28 Mounting Method: Surface Mount
Date Code:

Microchip PIC32MX250F128B-I/SO - Technical Attributes

Family Name:	PIC32MX
Core Processor:	MIPS32 M4K
Program Memory Type:	Flash
Flash Size (Bytes):	128kB
RAM Size:	32kB
Speed:	40MHz
No of I/O Lines:	19
InterfaceType / Connectivity:	I2C/I2S/SPI/UART
Peripherals:	Analog Comparators/I2C/I2S/On-Chip-ADC/SPI/UART/Watchdog
Number Of Timers:	5
Supply Voltage:	2.3V to 3.6V
Operating Temperature:	-40°C to +85°C
On-Chip ADC:	9-chx10-bit
Watchdog Timers:	1
Package Style:	SOIC-28
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

The PIC32MX250F128B-I/SO is a 32-bit microcontroller with audio and graphics interfaces, USB and advanced analog features. Available in a SOIC-28 package.

It has flexible and independent ADC trigger sources. It supports mTouch™ capacitive touch sensing and provides high-resolution time measurement (1 ns).

Features:

Operating Conditions
- 2.3V to 3.6V, -40ºC to +105ºC, DC to 40 MHz
Core: 40 MHz MIPS32® M4K®
- MIPS16e® mode for up to 40% smaller code size
- 1.56 DMIPS/MHz (Dhrystone 2.1) performance
- Code-efficient (C and Assembly) architecture
- Single-cycle (MAC) 32x16 and two-cycle 32x32 multiply
Clock Management
- 0.9% internal oscillator
- Programmable PLLs and oscillator clock sources
- Fail-Safe Clock Monitor (FSCM)
- Independent Watchdog Timer
- Fast wake-up and start-up
Power Management
- Low-power management modes (Sleep, Idle)
- Integrated Power-on Reset and Brown-out Reset
- 0.5 mA/MHz dynamic current (typical)
Audio Interface Features
- Data communication: I2S, LJ, RJ, DSP modes
- Control interface: SPI and I2C™
Timers/Output Compare/Input Capture
- Five General Purpose Timers:
- Five 16-bit and up to two 32-bit Timers/Counters
Communication Interfaces
- USB 2.0-compliant Full-speed OTG controller
- Two UART modules (10 Mbps)
- Supports LIN 2.0 protocols and IrDA® support
- Two 4-wire SPI modules (20 Mbps)
Direct Memory Access (DMA)
- Four channels of hardware DMA with automatic data size detection
- Two additional channels dedicated for USB
- Programmable Cyclic Redundancy Check (CRC)
Input/Output
- 15 mA source/sink on all I/O pins
- 5V-tolerant pins
- Selectable open drain, pull-ups, and pull-downs
Qualification and Class B Support
- AEC-Q100 REVG (Grade 2 -40ºC to +105ºC) planned
- Class B Safety Library, IEC 60730
Debugger Development Support
- In-circuit and in-application programming
- 4-wire MIPS® Enhanced JTAG interface
- Unlimited program and six complex data breakpoints
