Manufacturer Part #
NTTFS5C453NLTAG
Trench-6 40 V Power MOSFET
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1500 per Reel Package Style:WDFN-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2506 | ||||||||||
Product Specification Section
onsemi NTTFS5C453NLTAG - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
onsemi NTTFS5C453NLTAG - Technical Attributes
Attributes Table
| Product Status: | Active |
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 40V |
| Drain-Source On Resistance-Max: | 3mΩ |
| Rated Power Dissipation: | 3.3W to 68W |
| Qg Gate Charge: | 35nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 23A/107A |
| Turn-on Delay Time: | 11ns |
| Turn-off Delay Time: | 21ns |
| Rise Time: | 110ns |
| Fall Time: | 5ns |
| Operating Temp Range: | -55°C to +175°C |
| Gate Source Threshold: | 2V |
| Input Capacitance: | 2100pF |

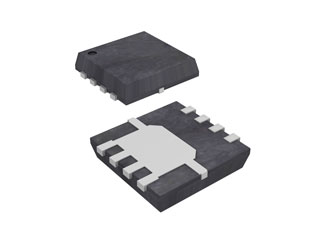

| Package Style: | WDFN-8 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
1,500
USA:
1,500
On Order:
0
Factory Lead Time:
34 Weeks
Quantity
Unit Price
1,500
$0.255
4,500
$0.25
15,000
$0.245
22,500+
$0.24
Product Variant Information section
Available Packaging
Package Qty:
1500 per Reel
Package Style:
WDFN-8
Mounting Method:
Surface Mount
