Manufacturer Part #
1-917337-5

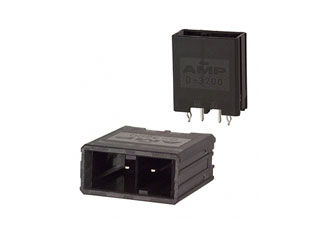

Dynamic Series 2 Position Single Row Through Hole 0.200 inch Header Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:26 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 2131 | ||||||||||
TE Connectivity 1-917337-5 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of ChangesAdd alternative plastic material for avoidance of urgent supply risk. Product spec, customer drawing, and UL file number (E28476) are not changed.Reason for Changes:Comply to the strategy of TE, we announced that we will add alternative plastic material to reduce the risk of supply capacity. Additionally, the alternative resin is sustainable as lower enviromental impact with the Co2 emision reducing. By adding alternative plastic material, we try to keep the production and continue supplying our products.
Description of Changes: Please be aware of an upcoming alternative resin material add to the listed part numbers. (Alternative resin Description: KINGFA PBT-RG151, BK012) Product spec, customer drawing, and UL file number (E28476) are not changed.Reason for Changes: Add the alternative resin material to improve the product, and reduce the risk of resin supply capacity against huge demand. Adding the alternative material, we try to keep the production and continue supplying our products. The change follows a strict procedure, which fully maintains quality, ability to supply and form -fit-function of the concerned products.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-917337-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/2087055
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-917337-5&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/2087055
TE Connectivity 1-917337-5 - Technical Attributes
| No of Positions: | 2 |
| Pitch: | 5.08 mm |
| Style/Orientation: | Vertical Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 250V |
| Current Rating: | 15A |
| Contact Plating: | Tin |
| Material: | Polyester |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Detent Latch |
| Color: | Black |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
26 per Tube
Mounting Method:
Through Hole
