MIC26601YJL-TR

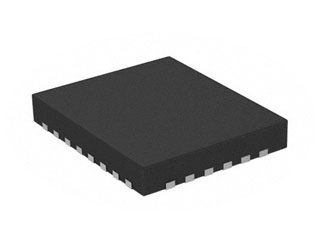

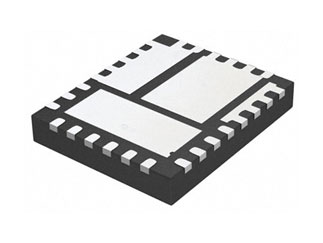

MIC26601 Series 600 kHz 6 A Buck Hyper Speed Control DC/DC Regulator - MLF-28
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Package Style:MLF-28 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Microchip MIC26601YJL-TR - Product Specification
Shipping Information:
ECCN:
PCN Information:
*** Update for PCN 113339 ***Description of Change: Qualification of UNIG as a new assembly site for various products available in Tube, Tray and Tape & Reel packing media.Reason for Change: To improve on-time delivery performance by qualifying UNIG as a new assembly site.Estimated First Ship Date: 30 June 2025 (date code: 2527)Revision History:November 22, 2023: Issued initial notification.October 31, 2024: Re-issued initial notification. Updated the qualification plan to include High Temperature Storage Life (HTSL) test. Updated the affected CPN list to remove the EOL'd CPNs. Updated the estimated qualification completion date and the timetable summary from June 2024 to October 2024.May 30, 2025: Issued final notification. Attached the Qualification Report. Provided estimated first ship date to be on June 30, 2025. Updated affected CPN list based on the updated scope to remove selected 93LCxx, 93AAxx, 93C4xx, MCP6xx, 93C8xx, 93C7xx, 24C0xx, MCP1xx, 93C6xx, 24FCxx, SY88xx, PIC1xx, MIC5xx, SY58xx, SY89xx, 93C5xx, 24LCxx, 24AAxx, 34AAxx, 25LCxx, 25AAxx, SPN1xx and MICRxx device families and to add selected MIC46xx, SM802xx, SM803xx, MIC52xx, MIC53xx, MIC82xx, MIC27xx, MIC26xx, MIC84xx, MIC20xx, MIC94xx, MIC22xx, MIC23xx, MIC28xx, MIC44xx, PIC12xx, PIC16xx, PIC18xx and dsPIC33FJ32MC202 device families.September 18, 2025: Re-issued final notification to update the Qualification Report to include wire bond pull, wire bond shear and solderability test results. Updated affected CPN list to remove EOL'd CPNs.
***UPDATE OF PCN109142***Description of Change: Qualification of UNIG as a new assembly site for various products available in Tube, Tray and Tape & Reel packing media.Reason for Change: To improve on-time delivery performance by qualifying UNIG as a new assembly site.Estimated First Ship Date: 30 June 2025 (date code: 2527)
PCN Status:Final NotificationDescription of Change:Qualification of AOS1 as new fabrication location for Die #2 and Die #3 for selected MIC24051, MIC24052, MIC26400, MIC26601, MIC26603, and MIC26603Z device families available in 28L VQFN (5x6x0.9mm) package.Reason for Change:To improve manufacturability by qualifying AOS1 as a new fabrication site for Die #2 and Die #3.Change Implementation Status:In ProgressEstimated First Ship Date:30 May 2025 (date code: 2522)
PCN Status:Final NotificationDescription of Change:Qualification of AOS1 as a new fabrication site for Die #2 and/or #3 on MIC26603YJL-TR, MIC26400YJL-TR, MIC26601YJL-TR, MIC27600YJL-TR, MIC24066T-E/QNA, MIC24067T-E/QNA, MIC26603-ZAYJL-TR, MIC26603-ZYJL-TR, MIC24051YJL-TR, and MIC24052YJL-TRcatalog part numbers (CPN) available in 28L and 36L VQFN (5x6x0.9mm) package.Reason for Change:To improve manufacturability by qualifying AOS1 as a new fabrication site Die #2 and/or #3.Change Implementation Status:In ProgressEstimated First Ship Date:February 03, 2025 (date code: 2506)
Description of Change:Qualification of AOS1 as new fabrication location for Die #2 and Die #3 for selected MIC24051, MIC24052, MIC26400, MIC26601, MIC26603, and MIC26603Z device families available in 28L VQFN (5x6x0.9mm) package.Reason for Change:To improve manufacturability by qualifying AOS1 as a new fabrication site for Die #2 and Die #3.
PCN Status:Initial NotificationDescription of Change:Qualification of UNIG as a new assembly site for various products available in Tube, Tray and Tape & Reel packing media.Reason for Change:To improve on-time delivery performance by qualifying UNIG as a new assembly site.Change Implementation Status:In ProgressEstimated Qualification Completion Date:October 2024
Description of Change:Qualification of MAPW as a new fabrication site for Die #2 of selected Micrel MIC266xx, MIC240xx, MIC264xx and SPN030xx device families available in 28L VQFN (5x6x0.9mm) package.Reason for Change:To improve productivity by qualifying MAPW as a new fabrication site for die #2.***Attached the Qualification Report. Updated notification subject and description of change to reflect MIC266xx instead of MIC66xx. Provided estimated first ship date to be on July 31, 2024.
Revision History:May 29, 2023: Issued initial notification.May 24, 2024: Issued final notification. Attached the Qualification Report. Revised the affected parts list due to updated scope. Provided estimated first ship date to be on June 14, 2024.Description of Change:Qualification of UNIG as a new final test site for various products available in Tube, Tray and Tape & Reel packing media.Reason for Change:To improve manufacturability and on-time delivery performance by qualifying UNIG as a new final test site.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MIC26601YJL-TR&field4=Microchip&field18=https://p1na.futureelectronics.com/p/3012206
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MIC26601YJL-TR&field4=Microchip&field18=https://p1na.futureelectronics.com/p/3012206
Microchip MIC26601YJL-TR - Technical Attributes
| Topology: | Buck |
| Input Voltage: | 4.5V to 28V |
| Output Current-Max: | 6A |
| Output Type: | Adjustable |
| Switching Frequency-Max: | 600kHz |
| Operating Temp Range: | -40°C to +125°C |
| Duty Cycle-Max: | 82% |
| Efficiency: | 95% |
| No. of Outputs: | 1 |
| Quiescent Current: | 1500µA |
| Storage Temperature Range: | -65°C to +160°C |
| Load Regulation (%): | 0.25% |
| Package Style: | MLF-28 |
| Mounting Method: | Surface Mount |
Features & Applications
The MIC26601 operates over an input supply range of 4.5V to 28V and provides a regulated output of up to 6A of output current. The output voltage is adjustable down to 0.8V with a guaranteed accuracy of ±1%, and the device operates at a switching frequency of 600kHz.
Features:
- Hyper Speed Control™ architecture enables
- High delta V operation (VIN = 28V and VOUT = 0.8V)
- Small output capacitance
- 4.5V to 28V input voltage
- 6A output current capability, up to 95% efficiency
- Adjustable output from 0.8V to 5.5V
- ±1% feedback accuracy
- Any Capacitor™ stable - zero-to-high ESR
- 600kHz switching frequency No external compensation
- Power Good (PG) output
- Foldback current-limit and "hiccup mode" short-circuit protection
- Supports safe startup into a pre-biased load
- –40°C to +125°C junction temperature range
- 28-pin 5mm x 6mm MLF® package
Applications:
- Distributed power systems
- Communications/networking infrastructure
- Set-top box, gateways, and routersPrinters, scanners, graphic cards, and video cards
Available Packaging
Package Qty:
1000 per Reel
Package Style:
MLF-28
Mounting Method:
Surface Mount
