Manufacturer Part #
MCQ03N06-TP

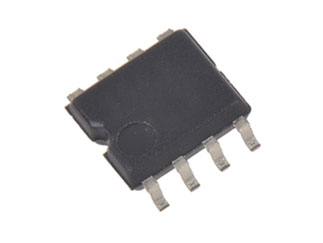

Dual N-Channel 60 V 3 A 105 mohm 1.7 W Surface Mount Power MOSFET - SOP-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Micro Commercial Components | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Reel Package Style:SOP-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2418 | ||||||||||
Product Specification Section
Micro Commercial Components MCQ03N06-TP - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Micro Commercial Components MCQ03N06-TP - Technical Attributes
Attributes Table
| Fet Type: | Dual N-Ch |
| No of Channels: | 2 |
| Drain-to-Source Voltage [Vdss]: | 60V |
| Drain-Source On Resistance-Max: | 105mΩ |
| Rated Power Dissipation: | 1.7W |
| Qg Gate Charge: | 6nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 3A |
| Turn-on Delay Time: | 6ns |
| Turn-off Delay Time: | 15ns |
| Rise Time: | 15ns |
| Fall Time: | 10ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 1.35V |
| Input Capacitance: | 247pF |
| Package Style: | SOP-8 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
8,000
USA:
8,000
Factory Lead Time:
16 Weeks
Quantity
Unit Price
4,000
$0.24
8,000+
$0.235
Product Variant Information section
Available Packaging
Package Qty:
4000 per Reel
Package Style:
SOP-8
Mounting Method:
Surface Mount
