Manufacturer Part #

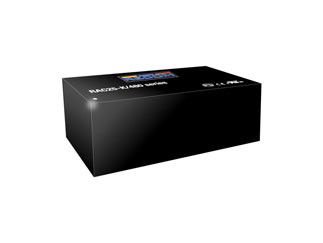

RAC25-24SK/480
25W AC/DC-Converter POWERLINE 3.2x1.8 3.6kV reg
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | RECOM | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:12 per Tray Mounting Method:Through Hole |
||||||||||
| Date Code: | 2531 | ||||||||||
RECOM RAC25-24SK/480 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Description and Reason for Change:This important update regarding the standard lead time for our 277 x AC/DC PSU units from our production site in Xiamen, China. Due to current circumstances, the standard lead time for these products will increase the lead time by approximately 12 weeks. However, if necessary, we may be able to improve the lead time by around 9-10 weeks. Please note that this will incur an additional cost of up to 20% due to the heavy weight of the units. This option can be verified and agreed upon on a case-by-case basis.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=RAC25-24SK/480&field4=RECOM&field18=https://p1na.futureelectronics.com/p/3166396
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=RAC25-24SK/480&field4=RECOM&field18=https://p1na.futureelectronics.com/p/3166396
RECOM RAC25-24SK/480 - Technical Attributes
| Type: | Encapsulated |
| No of Outputs: | Single |
| Output Power: | 25W |
| Output Voltage: | 24V |
| Input Voltage: | 120V to 750V |
| Output Current: | 1040mA |
| Input Voltage (VAC): | 85VAC to 528VAC |
| Load Regulation (%): | 2% |
| Switching Frequency-Max: | 50kHz |
| Operating Temp Range: | -40°C to +90°C |
| Isolation: | Isolated |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
12 per Tray
Mounting Method:
Through Hole
