Manufacturer Part #

ZTX951

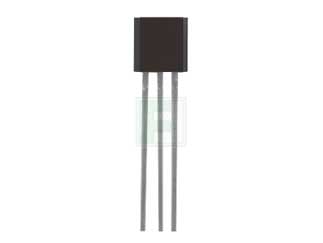

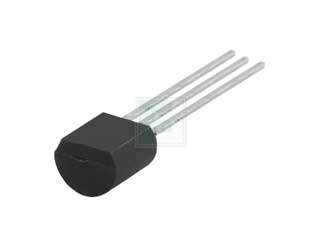

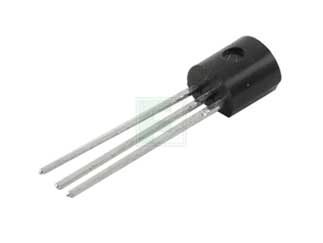

ZTX951 Series PNP 4 A 60 V Silicon Planar Medium Power Transistor - TO-92

ECAD Model:
Mfr. Name: Diodes Incorporated
Standard Pkg:
Product Variant Information section
Date Code: 2406
Product Specification Section
Diodes Incorporated ZTX951 - Technical Attributes
Attributes Table
Polarity: PNP
CE Voltage-Max: 60V
Collector Current Max: 4A
Power Dissipation-Tot: 1.2W
Package Style:  TO-92
Mounting Method: Through Hole
Features & Applications

The ZTX951 is a PNP Silicon planar medium power high current transistor with Low saturation voltage and 60 V collector to Emitter voltage.

Features:

  • 4 Amps continuous current
  • Up to 15 Amps peak current
  • Very low saturation voltage
  • Excellent gain up to 10 Amps
  • Spice model available

View the list of available ZTX9 Series of Transistors

Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
52,000
Factory Lead Time:
12 Weeks
Minimum Order:
4000
Multiple Of:
4000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1,460.00
USD
Quantity
Unit Price
1
$0.415
75
$0.405
250
$0.395
750
$0.385
2,500+
$0.365
