Manufacturer Part #
776164-4

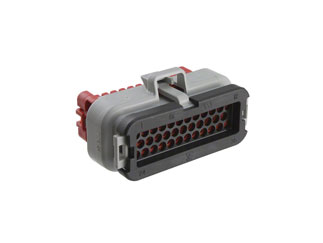

DEUTSCH AMPSEAL 35 Position Triple Row Free Hanging In-Line Plug Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:28 per Tray | ||||||||||
| Date Code: | 2313 | ||||||||||
TE Connectivity 776164-4 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Description of ChangesThe Industrial and Commercial Transportation business unit of TE Connectivity is making a minor drawing change to clarify the verbiage of the note that calls out the material of the housings for the Ampseal Plug Assembly for the product drawing(s) listed.Reason for Changes:Dear Customer, we hereby inform you of this drawing change. The change is necessary to clarify the note which calls out the material used to make the Ampseal Housings. The change does not impact performance. IMPORTANT: There is no change to the parts or material used to make the parts. This change is only to clarify our drawings.
General Product Description:35 position AMPSEAL Wire SealDescription of ChangesPlease be aware of an upcoming feature and material change to the following part numbers 776164-1 776164-2 776164-4 776164-5 776164-6 The material change is to one of the components that makes up to the final material The feature change is to the ribs in the circuit holes and the sealing ribs on perimeter of the sealReason for Changes:The material is being changed because one of the components used in the final material was no longer available. The seal vendor performed validation testing before seals were molded and sent for testing The geometry change was to update the circuit geometry to the latest design used by the vendor and to change the design of the ribs on the perimeter of the seal to compression ribs
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=776164-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/4009063
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=776164-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/4009063
TE Connectivity 776164-4 - Technical Attributes
| Type: | Housing |
| Style/Orientation: | Free Hanging In-line |
| No of Positions: | 35 |
| Pitch: | 4 mm |
Features & Applications
The 776164-4 is a part of AMPSEAL series and is Known for their rugged reliability even under high-temperature of automotive and industrial applications.
Product Features:
- Product Type = Connector
- Connector Type = Housing
- Mating Retention Type = Latching
- Seal Type = Peripheral and Wire Seals
- Fluid Type = Water
- Contact Type = Socket
- Contact Layout = Staggered
- Connector Style = Plug
- Mating Alignment = With
- Mating Alignment Type = Color Coded, Keyed
- Housing Material = Thermoplastic - GF
- UL Flammability Rating = UL 94V-0
- Fluid Resistance = Immersion
Available Packaging
Package Qty:
28 per Tray
