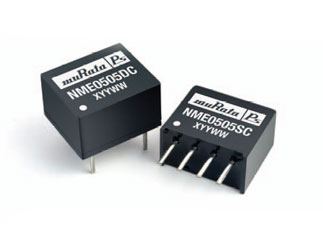

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

NME1205DC

NME Series 1 W Single Output 5 V Isolated Through Hole DC/DC Converter

NME1205DC Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Murata Power Solutions
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 35 per Tube Mounting Method: Through Hole
Date Code:

Murata Power Solutions NME1205DC - Technical Attributes

Type:	Encapsulated
Isolation:	Isolated
No of Outputs:	Single
Output Power:	1W
Output Voltage:	5V
Input Voltage:	12V
Mounting Method:	Through Hole

Features & Applications

The NME1205DC 1 W Single Output 5 V Isolated Through Hole DC-DC Converter of NME series this converter is suited to isolating or converting DC power rails

The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from –40°C and full 1 watt output at 85°C. For lower ripple, refer to output ripple reduction section.

Features:

RoHS compliant
Single isolated output
1 kVDC isolation
Efficiency up to 80%
Wide temperature performance at full
1 watt load, –40°C to 85°C
Power density 1.53W/cm3
UL 94V-0 package material
Footprint from 0.69cm2
Industry standard pinout
5 V & 12 V input
5 V, 9 V, 12 V and 15V output
No heatsink required
Internal SMD construction
Fully encapsulated with toroidal magnetics
No external components required
MTTF up to 3.4 million hours
Custom solutions available
Pin compatible with LME & NML series
PCB mounting
