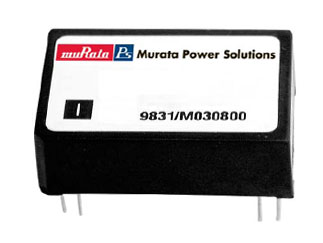

PWR13xxC Series 1.5 W Single Output 12 V Isolated Through Hole DC/DC Converter
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Murata Power Solutions | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:51 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | 2446 | ||||||||||
Murata Power Solutions PWR1307AC - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PWR1307AC&field4=Murata Power Solutions&field18=https://p1na.futureelectronics.com/p/4151679
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PWR1307AC&field4=Murata Power Solutions&field18=https://p1na.futureelectronics.com/p/4151679
Murata Power Solutions PWR1307AC - Technical Attributes
| Type: | Encapsulated |
| Isolation: | Isolated |
| No of Outputs: | Single |
| Output Power: | 1.5W |
| Output Voltage: | 12V |
| Input Voltage: | 12V |
| Operating Temp Range: | -40°C to +85°C |
| Efficiency: | 75% |
| Power Dissipation: | 1.5W |
| Load Regulation (%): | 1.5% |
| Output Current: | 0.12A |
| Switching Frequency-Max: | 220kHz |
| Ripple & Noise: | 40mV |
| Dimension: | L 32.3mm x W 20.5mm x H 10.2mm |
| Mounting Method: | Through Hole |
Features & Applications
The PWR1307AC is a part of PWR13xxC series Isolated DC/DC converter. The PWR13XXC series offers a broad line of low-cost, high-isolation voltage, unregulated, single and dual output DC/DC converters in a 24-pin DIP package. These small converters offer a 4000V isolation rating in a 1.25" x 0.8" package area.
The dielectric withstand characteristics of each converter is tested in production to ensure barrier integrity. During the development of the PWR13XXC Series extensive testing was done to verify that subjecting the barrier to as many as ten barrier tests will not destroy the barrier.
Features:
- Rohs compliant
- High isolation - 4000 v rating
- 8000 v isolation test voltage
- Barrier 100% production tested
- Low barrier capacitance - 10 pf
- Low leakage current - 2 μa max
- 24-pin dip package
- Internal filtering
Applications:
- Biomedical data acquisition
- Industrial process control
- Analytical measurements
- Ground loop elimination
- Intrinsic safety systems
