Manufacturer Part #
LBA716

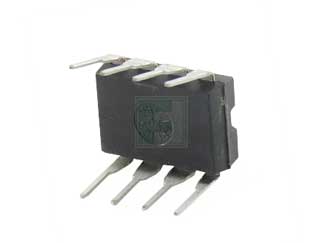

LBA716 Series 60 V 1 A Dual Pole Solid State Relay
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:50 per Tube Package Style:DIP-8 Mounting Method:Through Hole |
||||||||||
| Date Code: | |||||||||||
Littelfuse LBA716 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Description:Following the PCN EIC-1138, dated July 31st, 2024- Littelfuse IXYS Integrated Circuits Division (ICD) would like to inform you about additional pat numbers affected by this change.As a result, we need to remove the UL 94 V-0 flammability rating from the datasheets for the part numbers.Littelfuse would like to inform you that although components shipped from Littelfuse are considered to not have a UL 94 V-0 flammability rating, they remain fully compliant with the certifications outlined in their respective data sheets.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LBA716&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/5006439
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LBA716&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/5006439
Littelfuse LBA716 - Technical Attributes
| Output Voltage: | 60V |
| On-state Resistance-Max: | 400mΩ |
| Input Voltage: | 1.2V |
| Input Current: | 50mA |
| Contact Current-Max: | 1A |
| Isolation Voltage-RMS: | 3750V |
| Capacitance: | 105pF |
| Operating Temp Range: | -40°C to +85°C |
| Package Style: | DIP-8 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
50 per Tube
Package Style:
DIP-8
Mounting Method:
Through Hole
