Manufacturer Part #
EGP30D

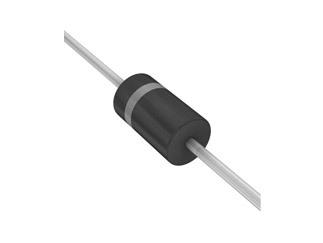

EGP30 Series 200V 3A 950mV Fast Recovery Standard TH Diode DO-201AD
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1250 per Reel Package Style:DO-201AD Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi EGP30D - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=EGP30D&field4=onsemi&field18=https://p1na.futureelectronics.com/p/5171260
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=EGP30D&field4=onsemi&field18=https://p1na.futureelectronics.com/p/5171260
onsemi EGP30D - Technical Attributes
Attributes Table
| Type: | Standard |
| Configuration: | Single |
| Average Rectified Current-Max: | 3A |
| Forward Voltage: | 0.95V |
| Reverse Voltage-Max [Vrrm]: | 200V |
| Reverse Recovery Time-Max: | 50ns |
| Reverse Current-Max: | 5µA |
| Diode Capacitance-Max: | 95pF |
| Peak Current-Max: | 125A |
| Operating Temp Range: | -65°C to +150°C |
| Package Style: | DO-201AD |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1,250
$0.275
2,500
$0.27
6,250+
$0.265
Product Variant Information section
Available Packaging
Package Qty:
1250 per Reel
Package Style:
DO-201AD
Mounting Method:
Through Hole
