Boyd | 507222B00000G

Manufacturer Part #

507222B00000G

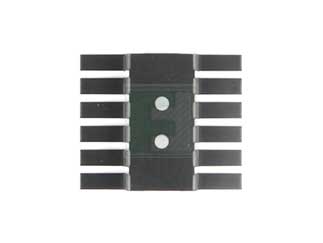

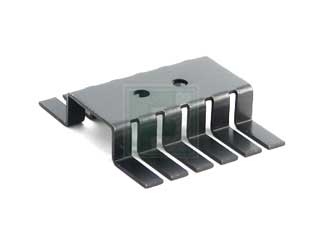

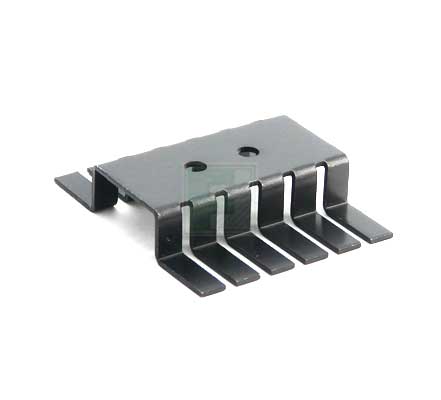

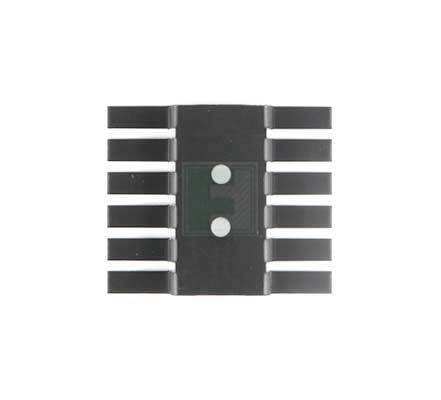

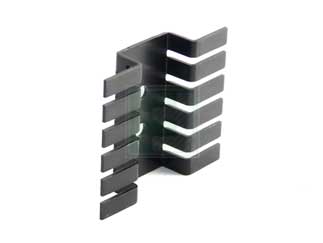

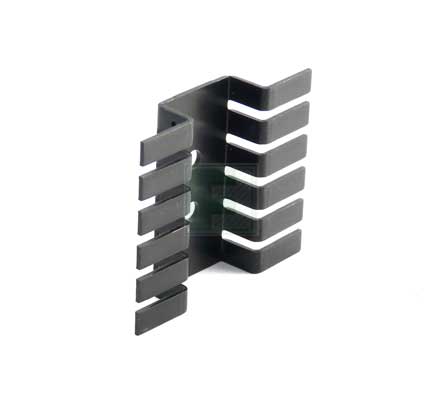

TO-220 9.6 C/W Thermal Resistance Dual Device Hat Section Heat Sink

ECAD Model:
Mfr. Name: Boyd
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Boyd 507222B00000G - Technical Attributes
Attributes Table
Thermal Resistance: 9.6°C/W
Material: Black Anodized
Dimension: H  9.53mm x L  37.34mm x W  44.45mm
Features & Applications

Aavid Thermalloy is the world’s largest thermal management provider.  With their world-class production facilities and over 40 years of experience in the industry, Aavid Thermalloy has the know-how and ability to provide a solution to the most demanding thermal challenges.  Aavid Thermalloy continues to be an innovator in thermal management technologies and a leader in heat sink manufacturing.

The 507222B00000G is a TO-220 package heat sink with a thermal resistance of 20.30 C/W.  This is a channel style heat sink with a wide mounting service.  The 507222B00000G is black anodized.

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
20000
Multiple Of:
2000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$31,200.00
USD
Quantity
Unit Price
1
$1.66
25
$1.64
50
$1.62
150
$1.60
300+
$1.56
