Manufacturer Part #
PD3S220L-7

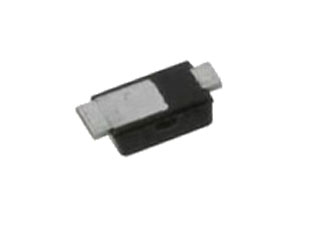

PD Series Single 20 V 33 A Surface Mount Schottky Rectifier - POWERDI-323
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:POWERDI-323 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Diodes Incorporated PD3S220L-7 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Diodes Incorporated PD3S220L-7 - Technical Attributes
Attributes Table
| Peak Current-Max: | 33A |
| Reverse Voltage-Max [Vrrm]: | 20V |
| Forward Voltage: | 0.49V |
| Configuration: | Single |
| Diode Capacitance-Max: | 46pF |
| Thermal Resistance: | 170°C/W |
| Operating Temp Range: | -65°C to +125°C |
| Storage Temperature Range: | -65°C to +125°C |
| Package Style: | POWERDI-323 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
3,000
$0.106
6,000
$0.105
9,000
$0.104
12,000
$0.10
15,000+
$0.102
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
POWERDI-323
Mounting Method:
Surface Mount
