Manufacturer Part #
RACM30-12SK/277/PMP

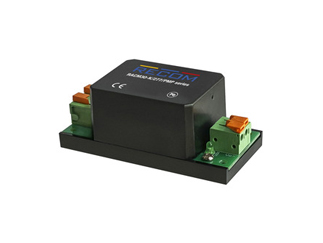

RACM30 Series 30 W 12 V 85 to 305 VAC Single Output Panel Mount AC/DC Converter
| | |||||||||||
| | |||||||||||
| Mfr. Name: | RECOM | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:24 per Tray Mounting Method:Panel Mount | ||||||||||
| Date Code: | 2252 | ||||||||||
RECOM RACM30-12SK/277/PMP - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description and Reason for Change:This important update regarding the standard lead time for our 277 x AC/DC PSU units from our production site in Xiamen, China. Due to current circumstances, the standard lead time for these products will increase the lead time by approximately 12 weeks. However, if necessary, we may be able to improve the lead time by around 9-10 weeks. Please note that this will incur an additional cost of up to 20% due to the heavy weight of the units. This option can be verified and agreed upon on a case-by-case basis.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=RACM30-12SK/277/PMP&field4=RECOM&field18=https://p1na.futureelectronics.com/p/6170865
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=RACM30-12SK/277/PMP&field4=RECOM&field18=https://p1na.futureelectronics.com/p/6170865
-
RECOM RACM30-12SK/277/PMP - Technical Attributes
| Type: | Encapsulated |
| No of Outputs: | Single |
| Output Power: | 30W |
| Output Voltage: | 12V |
| Output Current: | 2.5A |
| Input Voltage (VAC): | 85VAC to 305VAC |
| Ripple & Noise: | 100mV |
| Load Regulation (%): | 1% |
| Switching Frequency-Max: | 100kHz |
| Operating Temp Range: | -40°C to +90°C |
| Isolation: | Isolated |
| Mounting Method: | Panel Mount |
Available Packaging
Package Qty:
24 per Tray
Mounting Method:
Panel Mount
