Manufacturer Part #

5222092-1

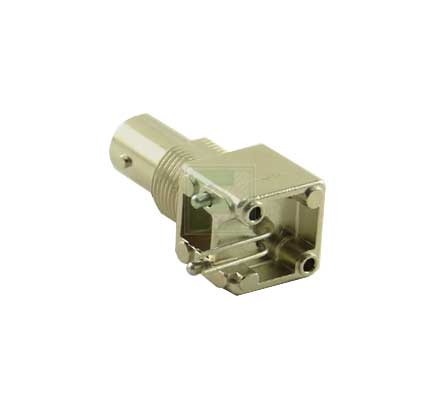

Metal 75 Ohm Right Angle Jack PCB Mount BNC Connector

5222092-1 Datasheet 5222092-1 Documentation 3D View Product Specification
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	TE Connectivity
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 525 per Tube
Date Code:

TE Connectivity 5222092-1 - Technical Attributes

Type:	BNC
Style/Orientation:	Right Angle Jack
Impedance:	75Ω
Termination:	PCB

Features & Applications

The 5222092-1 is a part of BNC family of RF connector with bayonet locking coupling and it provides highly reliable, quick connect/disconnect coaxial connections. Exclusive single and O crimp terminations allow positive insulation grip and require no soldering, providing terminations at a very low overall applied cost.

Available in both 50 and 75 ohm versions, these connectors feature numerous styles including cable plugs and jacks, adapters and printed circuit board connectors. In addition to a variety of crimp type terminations, connectors are furnished in field replaceable and twist-on styles. These connectors accept a wide range of coaxial cables and are intermateable with industry standard connectors designed to MIL-C- 39012 specifications.

Features:

Connector - RF
Jack
Connector Style = Jack
Applies To Printed Circuit Board
PCB Mounting Orientation = Right Angle.
