HARTING | 09731966903

Manufacturer Part #

09731966903

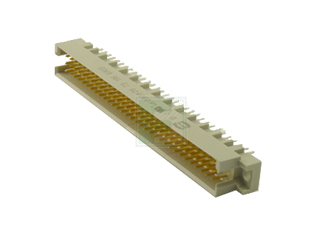

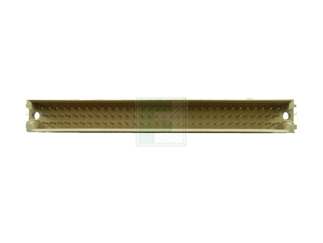

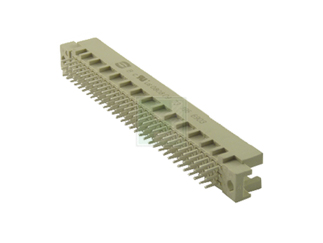

Type R Board to Board 96 Position Male Straight 2.54 mm DIN41612 Connector

ECAD Model:
Mfr. Name: HARTING
Standard Pkg:
Product Variant Information section
Date Code: 2009
Product Specification Section
HARTING 09731966903 - Technical Attributes
Attributes Table
Type: Board to Board (Backplane)
Style/Orientation: Straight Header/Plug
No of Positions: 96
No of Rows: 3
Pitch: 2.54 mm
Termination: Solder Pins/Tails
Material: Thermoplastic Resin
Contact Plating: Gold
Contact Resistance: 15mΩ
Current Rating: 2A
Operating Temp Range: -55°C to +125°C
Color: Grey
Mounting Method: Through Hole
Features & Applications

The 09731966903 is a Type R Board to Board 96 Position Male Straight 2.54 mm DIN41612 Connector.

Features:

  • Type Type R
  • Standard/Inverse Inverse
  • Contact gender Male contacts
  • Size Whole size
  • Number of contacts 96 poles
  • Contact arrangement Rows a, b and c
  • Termination Straight solder pins
  • Termination length 4.0 mm
  • First mating contact without first mating contacts
  • Current 2 A max
Pricing Section
Global Stock:
2
USA:
2
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
5 Weeks
Minimum Order:
1
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$5.11
USD
Quantity
Unit Price
1
$5.11
10
$4.99
30
$4.90
75
$4.83
200+
$4.70
