TE Connectivity | 2-520264-2

Manufacturer Part #

2-520264-2

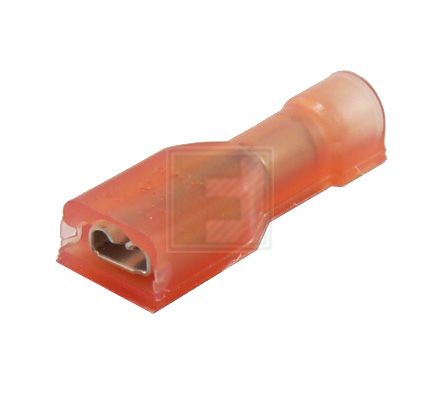

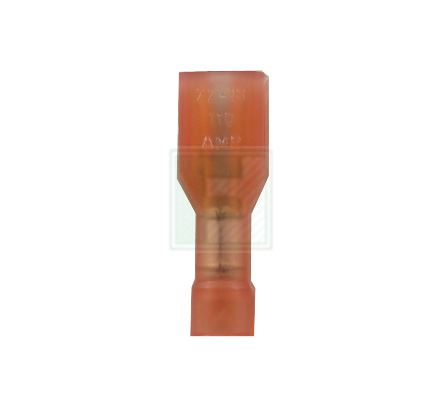

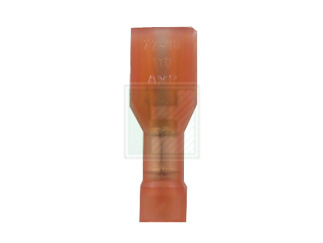

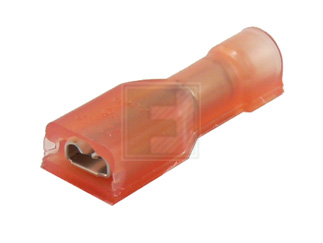

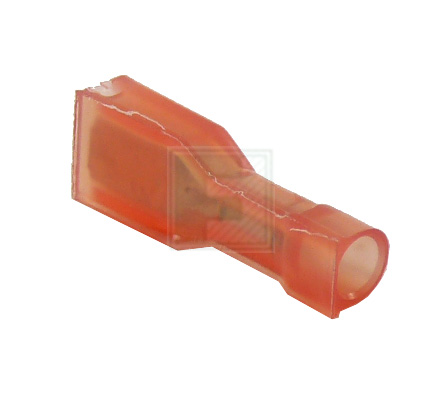

Ultra Fast 22-18 AWG Straight Fully Insulated Receptacle Assembly

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 2-520264-2 - Technical Attributes
Attributes Table
Size: Tab 0.250" x 0.032"
Style: Fully Insulated
Type: Receptacle
Wire Gauge: AWG 22-18
Color: Red
Contact Material: Brass
Contact Plating: Tin
Gender: Female
Operating Temp Range: 105°C
Voltage Rating: 600V
Features & Applications

The Faston Ultra-Fast (250) Series is a 22-18 AWG Fully Insulated Straight Receptacle

The Ultra-Fast Fully Insulated Faston Receptacle offers the advantage of a completely protected terminal and a wire crimp with comparable electromechanical performance to open barrel “F” crimp Faston Terminals.

Features:

  • Terminal Type = Receptacle
  • Proprietary Name = Ultra-Fast
  • Receptacle Style = Straight
  • Mating Area Interface Dimensions (mm [in]) = 6.35 x 0.81 [.250 x .032]
  • Material = Brass
  • Insulation Diameter (mm [in]) = 5.84 [.230] Max.
  • Insulation Support = Non-Insulation Support
  • Finish = Tin







Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
109,000
Factory Lead Time:
19 Weeks
Minimum Order:
6000
Multiple Of:
6000
Total
$960.00
USD
Quantity
Unit Price
6,000+
$0.16
