onsemi | MMBD701LT1G

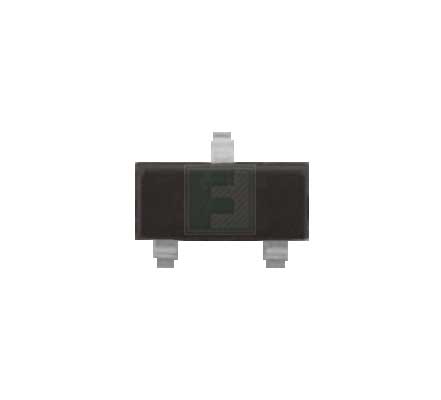

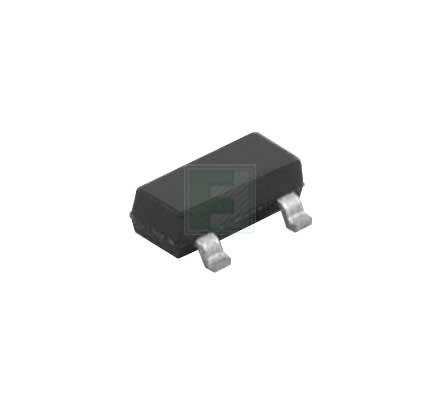

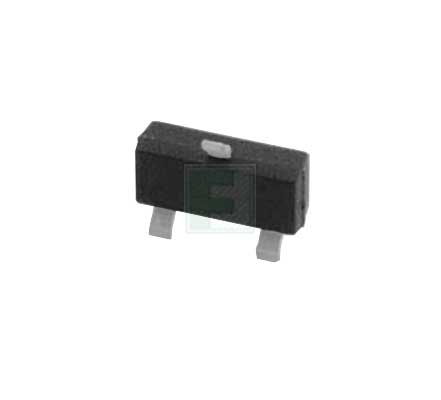

The MMBD701L series of Silicon Hot-Carrier Diodes are designed primarily for high-efficiency UHF and VHF detector applications. They are readily adaptable to many other fast switching RF and digital applications. They are supplied in an inexpensive plastic package for low-cost, high-volume consumer and industrial/commercial requirements. They are also available in a Surface Mount package.

Key Features:

• Extremely Low Minority Carrier Lifetime - 15 ps (Typ)
• Very Low Capacitance - 1.0 pF @ VR = 20 V
• High Reverse Voltage - to 70 V
• Low Reverse Leakage - 200 nA (Max)
• Pb-Free Packages are Available

Note:

• Moisture Sensitivity level (MSL) for surface mount devices (lead free measured at 260°C reflow, non lead free at 235°C reflow)
