Manufacturer Part #

MUR4100ERLG

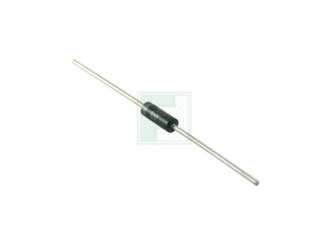

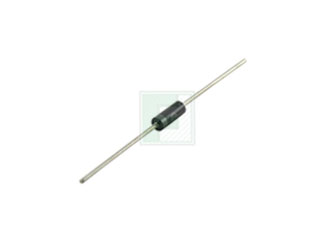

MUR Series 4 A 1000 V 75 ns Through Hole SWITCHMODE™ Power Rectifier - CASE 267

MUR4100ERLG Datasheet MUR4100ERLG Documentation Package Drawings Application Note Simulation Model
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	onsemi
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1500 per Reel Package Style: CASE 267 Mounting Method: Through Hole
Date Code:	2431

onsemi MUR4100ERLG - Technical Attributes

Average Rectified Current-Max:	4A
Reverse Voltage-Max [Vrrm]:	1000V
Reverse Current-Max:	25µA
Forward Voltage:	1.85V
Reverse Recovery Time-Max:	75ns
Package Style:	CASE 267
Mounting Method:	Through Hole

Features & Applications

The MUR410 Series Switchmode standard rectifiers, these state−of−the−art devices are designed for use in switching power supplies, inverters and as free wheeling diodes.

Key Features:

Ultrafast 25 ns, 50 ns and 75 ns Recovery Times
175°C Operating Junction Temperature
Low Forward Voltage
Low Leakage Current
High Temperature Glass Passivated Junction
Reverse Voltage to 600 V
Shipped in Plastic Bags, 500 per Bag
Available in Tape and Reel, 1500 per Reel, by Adding a “RLG’’ Suffix to the Part Number
MUR460 available in Fan Fold Ammo Pak, 1000 per Box, by adding a “FFG” suffix to the part number
These are Pb−Free Packages

Characteristics:

Case: Epoxy, Molded
Weight: 1.1 Gram (Approximately)
Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
Polarity: Cathode indicated by Polarity Band
