Manufacturer Part #

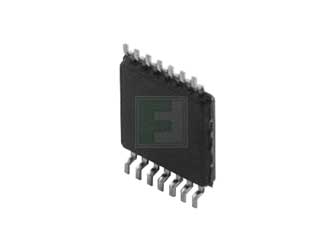

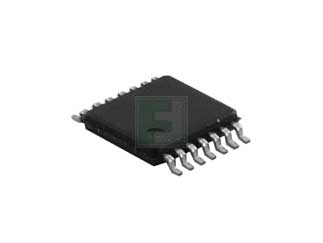

74AC04MTCX
74AC Series 6 V Surface Mount TTL-Compatible Inputs Hex Inverter TSSOP-14
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:TSSOP-14 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi 74AC04MTCX - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
onsemi 74AC04MTCX - Technical Attributes
Attributes Table
| Logic Circuit: | Inverter |
| Family: | C/AC |
| No of Functions / Channels: | 6 |
| Supply Voltage-Nom: | 2V to 6V |
| Propagation Delay: | 4ns |
| Operating Temperature: | -40°C to +85°C |
| Capacitance: | 4.5pF |
| No of Inputs: | 6 |
| No of Outputs: | Six |
| High Level Output Current: | -24mA |
| Low Level Output Current: | 24mA |
| No of Pins: | 14 |
| Quiescent Current: | 20µA |
| Moisture Sensitivity Level: | 1 |
| Package Style: | TSSOP-14 |
| Mounting Method: | Surface Mount |
Features & Applications
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
13 Weeks
Quantity
Unit Price
2,500
$0.138
5,000
$0.137
7,500
$0.136
12,500
$0.134
25,000+
$0.132
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
TSSOP-14
Mounting Method:
Surface Mount
