Manufacturer Part #

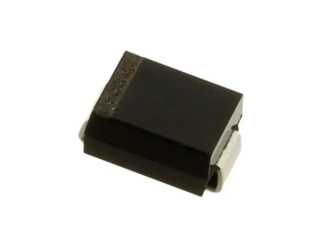

CMSH3-40MA TR13 PBFREE
CMSH Series 40 V 3 A Surface Mount Schottky Barrier Silicon Rectifier - SMA
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Central Semiconductor | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Package Style:SMA (DO-214AC, SOD-106) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Central Semiconductor CMSH3-40MA TR13 PBFREE - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CMSH3-40MA TR13 PBFREE&field4=Central Semiconductor&field18=https://p1na.futureelectronics.com/p/7123195
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CMSH3-40MA TR13 PBFREE&field4=Central Semiconductor&field18=https://p1na.futureelectronics.com/p/7123195
Central Semiconductor CMSH3-40MA TR13 PBFREE - Technical Attributes
Attributes Table
| Average Rectified Current-Max: | 3A |
| Reverse Voltage-Max [Vrrm]: | 40V |
| Reverse Current-Max: | 500µA |
| Forward Voltage: | 0.5V |
| Thermal Resistance: | 30°C/W |
| Operating Temp Range: | -65°C to +150°C |
| Leakage Current: | 500µA |
| Configuration: | 1 |
| Package Style: | SMA (DO-214AC, SOD-106) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
18 Weeks
Quantity
Unit Price
5,000+
$0.265
Product Variant Information section
Available Packaging
Package Qty:
5000 per Reel
Package Style:
SMA (DO-214AC, SOD-106)
Mounting Method:
Surface Mount
