Manufacturer Part #
TP12SH9AVBE

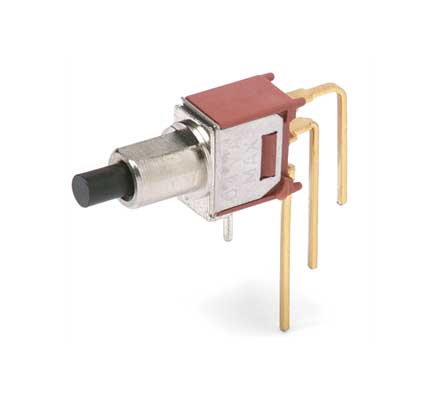

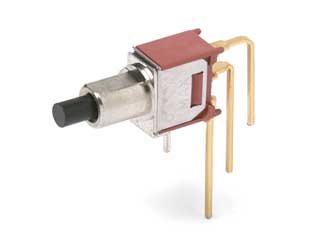

TP Series 0.4A SPDT Vertical Right Angle Mount On-Monetary-On Pushbutton Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | C&K | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:80 per Bulk Mounting Method:PCB Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
C&K TP12SH9AVBE - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
C&K TP12SH9AVBE - Technical Attributes
Attributes Table
| Rated Voltage (VAC): | 20VAC |
| Rated Voltage: | 20V |
| Contact Current-Max: | 0.4A |
| Switch Operation: | On-Mom |
| Circuitry: | SPDT |
| Insulation Resistance: | 1GΩ |
| Cap Color: | Black |
| Actuator Style: | Pushbutton |
| Termination Style: | Vertical / Right Angle |
| Operating Temperature: | -30°C to +85°C |
| Contact Plating: | Gold |
| Mounting Method: | PCB Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
1
$9.02
4
$8.90
15
$8.78
30
$8.72
75+
$8.59
Product Variant Information section
Available Packaging
Package Qty:
80 per Bulk
Mounting Method:
PCB Mount
