Everlight | EL3063

Manufacturer Part #

EL3063

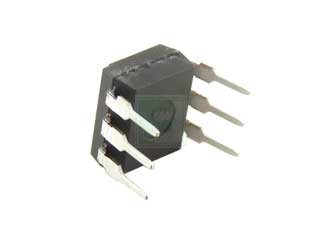

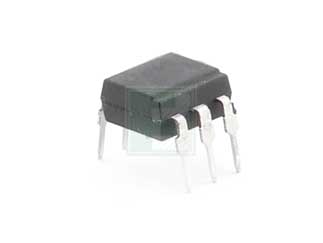

EL3063 Series 5000 Vrms Through Hole Zero Cross Triac Driver Photocoupler -DIP-6

ECAD Model:
Mfr. Name: Everlight
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Everlight EL3063 - Technical Attributes
Attributes Table
No of Channels: 1
Isolation Voltage-RMS: 5000V
Off-State Voltage [Vdrm]: 600V
Operating Temp-Max: 100°C
Package Style:  DIP-6
Mounting Method: Through Hole
Features & Applications
The EL3063 is a single channel, zero cross triac driver photocoupler. It consists of a GaAs infrared emitting diode optically coupled to a monolithic silicon zero voltage crossing photo triac.

Features:
  • Peak breakdown voltage 600 V
  • High isolation voltage between input and output
  • Zero voltage crossing
  • Pb free and RoHS compliant

Applications:

  • Solenoid/valve controls
  • Light controls
  • Static power switch
  • AC motor drivers
  • E.M. contactors
  • Temperature controls
  • AC motor starters
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
18 Weeks
Minimum Order:
20020
Multiple Of:
65
Total
$7,307.30
USD
Quantity
Unit Price
50
$0.405
150
$0.395
500
$0.39
1,500
$0.38
5,000+
$0.365
