Manufacturer Part #
PHDR-22VS

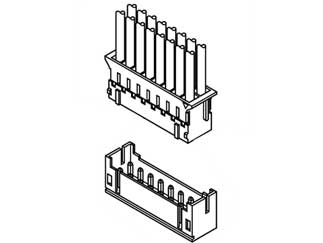

PHD Series 22 Position 2.0 mm Dual Row Wire to Board Socket
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1000 per Bag |
||||||||||
| Date Code: | 2527 | ||||||||||
Product Specification Section
JST PHDR-22VS - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
China
HTS Code:
8538.90.60.00
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PHDR-22VS&field4=JST&field18=https://p1na.futureelectronics.com/p/7560998
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PHDR-22VS&field4=JST&field18=https://p1na.futureelectronics.com/p/7560998
JST PHDR-22VS - Technical Attributes
Attributes Table
| Type: | Wire to Board |
| No of Positions: | 22 |
| Pitch: | 2 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | Crimp |
Features & Applications
The PHDR-22VS is a part of PHD Series 2.0 mm 22 Position dual Row wire to Board Connector.
Features:
- Compact
- Reliable contacts
- Fully shrouded header
Product Specifications:
- Pitch: 2.0 mm
- Current rating: 3.0 A
- Voltage rating: 250 V
- Temperature range: -25°C to +85°C
- Insulation resistance: 1000 M?
View the Complete PHD Series of Connectors
Pricing Section
Global Stock:
1,000
USA:
1,000
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1,000
$0.28
2,000
$0.275
4,000
$0.27
5,000+
$0.265
