Manufacturer Part #
1-770970-0

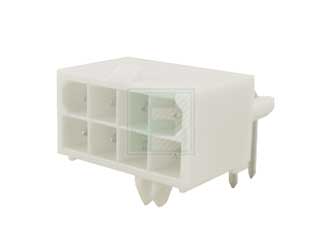

Mini-Universal MATE-N-LOK 8 Position Dual Row Through-Hole Right Angle Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Bag Mounting Method:Through Hole | ||||||||||
| Date Code: | 2311 | ||||||||||
TE Connectivity 1-770970-0 - Product Specification
Shipping Information:
ECCN:
PCN Information:
General Product Description: Mini UMNL - Header AssemblyDescription of ChangesAdding an additional resin (Nylon) option for this product. Necessary qualification tests as per the Product specification were performed and passed. Reason for Changes:Standardizing our global resins and adding an additional resin option to help avoid global shortages and interruptions in supplyFirst Ship Date of Changed Items (Changed Parts Only): 25-SEP-2023
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-770970-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/7805377
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-770970-0&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/7805377
TE Connectivity 1-770970-0 - Technical Attributes
| No of Positions: | 8 |
| Pitch: | 4.14 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -55°C to +105°C |
| Voltage Rating: | 600V |
| Current Rating: | 9.5A |
| Contact Plating: | Tin |
| Material: | Nylon |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Pin Headers |
| Mating Type: | Locking Tab |
| Color: | White |
| Mounting Method: | Through Hole |
Features & Applications
The 1-770970-0 is a Mini-Universal MATE-N-LOK 8 Position 4.14 mm Pitch Dual Row Through-Hole Right Angle Header.
Product Specifications:
- Product Type = Connector
- Connector Type = Header
- Connector Line = Mini-Universal MATE-N-LOK, Mini-Universal MATE-N-LOK 2
- Mount = Printed Circuit Board
- Color = White
- PCB Mount Retention = With
- Mount Angle = Right Angle
- Mating Retention Type = Detent Lock
- Voltage (VAC) = 600
- Current Rating (A) = 9.5
- Termination Method = Solder
- Termination Post Length (mm [in]) = 3.68 [0.145]
- Solder Tail Contact Plating = Matte Tin over Nickel
- Centerline (mm [in]) = 4.14 [0.163]
- Number of Positions = 8
- Mating Retention = With
- Contact Diameter (mm [in]) = 0.99 [0.039]
- PCB Mount Retention Type = Boardlock(s)
View the Available 1-77097 Series of Headers
Available Packaging
Package Qty:
1 per Bag
Mounting Method:
Through Hole
