Manufacturer Part #

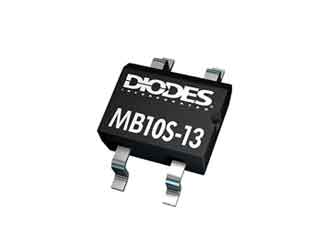

MB10S-13
MB10S Series 1 kV 0.8 A Surface mount Glass Passivated Bridge Rectifier-MBS
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2445 | ||||||||||
Product Specification Section
Diodes Incorporated MB10S-13 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Diodes Incorporated MB10S-13 - Technical Attributes
Attributes Table
| Type: | Single Phase |
| Average Rectified Current-Max: | 0.8A |
| Reverse Voltage-Max [Vrrm]: | 1000V |
| Peak Current-Max: | 30A |
| RMS Voltage-Max: | 700V |
| Reverse Current-Max: | 5µA |
| Forward Voltage: | 0.93V |
| DC Blocking Voltage: | 1000V |
| Operating Temp Range: | -55°C to +150°C |
| Thermal Resistance: | 101°C/W |
| Storage Temperature Range: | -55°C to +150°C |
| Diode Capacitance-Nom: | 8pF |
| Moisture Sensitivity Level: | 1 |
| No of Terminals: | 4 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
3,000
USA:
3,000
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
3,000
$0.0578
6,000
$0.0568
9,000
$0.0563
15,000
$0.0556
30,000+
$0.0541
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Mounting Method:
Surface Mount
