Vishay | CNY74-4H

Manufacturer Part #

CNY74-4H

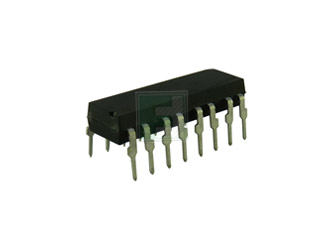

CNY74-4H Series Quad Channel 70 V 5300 Vrms Phototransistor Optocoupler - DIP-16

ECAD Model:
Mfr. Name: Vishay
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Vishay CNY74-4H - Technical Attributes
Attributes Table
No of Channels: 4
Isolation Voltage-RMS: 5300V
Output Voltage-Max: 70V
CTR-Min: 50%
Operating Temp-Max: 100°C
Package Style:  DIP-16
Mounting Method: Through Hole
Features & Applications
The CNY74-4H is a Quad channel phototransistor output optocoupler. It is optically coupled pair with a GaAIAs infrared LED and a silicon NPN phototransistor.

The Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output.

Features:

  • TTL compatible
  • Transfer ratio, 35 % typical
  • Coupling capacitance, 0.5 pF
  • Dual and quad channel
  • Industry standard DIP packages
  • Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC






Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
4 Weeks
Minimum Order:
1000
Multiple Of:
25
Total
$775.00
USD
Quantity
Unit Price
25
$0.83
75
$0.815
250
$0.795
750
$0.775
2,500+
$0.74
