Microchip | MIC4429YMM

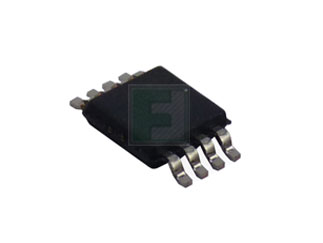

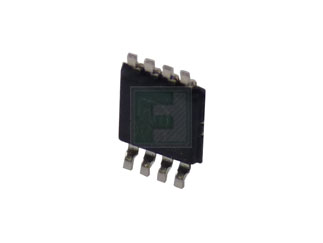

The MIC4429YMM is a inverting low side MOSFET driver with a peak output current of 6 A, available in surface mount MSOP-8 package.

This device can replace three or more discrete components, reducing PCB area requirements, simplifying product design, and reducing assembly cost. The rail-to-rail swing capability insures adequate gate voltage to the MOSFET during power up/down sequencing.

Features:

• CMOS Construction
• Latch-Up Protected: Will Withstand >500 mA Reverse Output Current
• Logic Input Withstands Negative Swing of Up to 5 V
• Matched Rise and Fall Times : 25 ns
• High Peak Output Current : 6 A Peak
• Wide Operating Range : 4.5 V to 18 V
• High Capacitive Load Drive : 10,000 pF
• Low Delay Time : 55 ns Typ
• Logic High Input for Any Voltage From 2.4 V to VS
• Low Equivalent Input Capacitance (typ) : 6 pF
• Low Supply Current : 450 μA With Logic 1 Input
• Low Output Impedance : 2.5 Ω
• Output Voltage Swing Within 25mV of Ground or VS

Applications:

• Switch Mode Power Supplies
• Motor Controls
• Pulse Transformer Driver
• Class-D Switching Amplifiers
