Manufacturer Part #
BAW56W,135
Diode Array 1 Pair Common Anode Standard 90 V 150mA SMT SC-70, SOT-323
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Nexperia | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:10000 per Std. Mfr. Pkg Package Style:SOT-323 (SC-70) Mounting Method:Surface Mount |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
Nexperia BAW56W,135 - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
N/A
HTS Code:
N/A
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BAW56W,135&field4=Nexperia&field18=https://p1na.futureelectronics.com/p/baw56w-135-C016353993
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=BAW56W,135&field4=Nexperia&field18=https://p1na.futureelectronics.com/p/baw56w-135-C016353993
Nexperia BAW56W,135 - Technical Attributes
Attributes Table
| Type: | Standard |
| Configuration: | Dual |
| Reverse Current-Max: | 0.5µA |
| Forward Voltage: | 1.25V |
| Reverse Voltage-Max [Vrrm]: | 90V |
| Reverse Recovery Time-Max: | 4ns |
| Diode Capacitance-Max: | 2pF |
| Average Forward Current-Max: | 150mA |
| Peak Current-Max: | 4A |
| Operating Temp Range: | -65°C to +150°C |

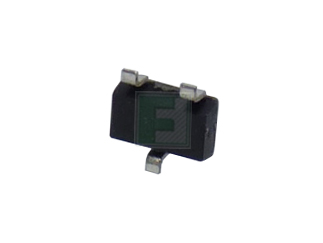

| Package Style: | SOT-323 (SC-70) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
CALL Weeks
Quantity
Unit Price
30,000
$0.0119
40,000
$0.0118
50,000
$0.0117
100,000
$0.0116
150,000+
$0.0114
Product Variant Information section
Available Packaging
Package Qty:
10000 per Std. Mfr. Pkg
Package Style:
SOT-323 (SC-70)
Mounting Method:
Surface Mount
