Manufacturer Part #
NSR10F30NXT5G

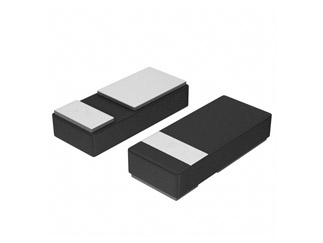

NSR10F30NXT5G Series 30 V 1 A Surface Mount Schottky Barrier Diode - DSN-2
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi NSR10F30NXT5G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NSR10F30NXT5G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/discretes--diodes--schottky-diodes/nsr10f30nxt5g-on-semiconductor-1003650
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NSR10F30NXT5G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/discretes--diodes--schottky-diodes/nsr10f30nxt5g-on-semiconductor-1003650
onsemi NSR10F30NXT5G - Technical Attributes
Attributes Table
| Average Rectified Current-Max: | 1A |
| Peak Current-Max: | 18A |
| Reverse Voltage-Max [Vrrm]: | 30V |
| Reverse Current-Max: | 100µA |
| Forward Voltage: | 0.45V |
| Power Dissipation: | 548mW |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
5,000
$0.0995
10,000
$0.0976
15,000+
$0.0959
Product Variant Information section
Available Packaging
Package Qty:
5000 per Reel
Mounting Method:
Surface Mount
