Manufacturer Part #
NSBC144EDXV6T1G

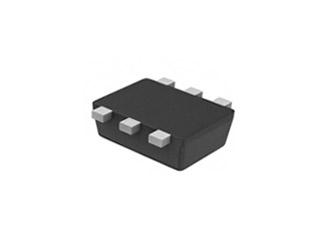

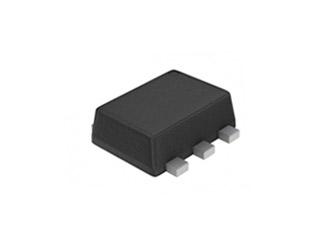

NSBC Series 50 V 100 mA 47 kOhm NPN Dual Bias Resistor Transistor - SOT-563
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Reel Package Style:SOT-563 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi NSBC144EDXV6T1G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NSBC144EDXV6T1G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/discretes--transistors--digital-transistors/nsbc144edxv6t1g-on-semiconductor-9078064
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NSBC144EDXV6T1G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/discretes--transistors--digital-transistors/nsbc144edxv6t1g-on-semiconductor-9078064
onsemi NSBC144EDXV6T1G - Technical Attributes
Attributes Table
| Polarity: | NPN |
| R1, R2: | 47kΩ |
| Output Current-Max: | 100mA |
| Supply Voltage: | 50|V |
| Package Style: | SOT-563 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
18 Weeks
Quantity
Unit Price
4,000
$0.0515
8,000
$0.0506
12,000
$0.0501
16,000
$0.0498
20,000+
$0.0487
Product Variant Information section
Available Packaging
Package Qty:
4000 per Reel
Package Style:
SOT-563
Mounting Method:
Surface Mount
