Manufacturer Part #
APT106N60B2C6

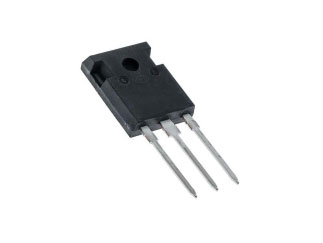

APT106N60 Series 600V 106A N-Channel Power MOSFET TO-247
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Tube Package Style:T-MAX Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Microchip APT106N60B2C6 - Product Specification
Shipping Information:
ECCN:
PCN Information:
PCN Status:Final NotificationDescription of Change:Qualification of MG15F-35AB and MG15F-0140B as a new mold compound material for various products available in TO-264, SOT-227 and TO-247 packages at FSTS assembly site.Reason for Change:To improve productivity by qualifying MG15F-35AB and MG15F-0140B as a new mold compound.Change Implementation Status:In ProgressEstimated First Ship Date:June 29, 2024 (date code: 2426)
PCN Status:Initial NotificationDescription of Change:Qualification of MG15F-35AB and MG15F-0140B as a new mold compound material for various products available in TO-264, SOT-227 and TO-247 packages at FSTS assembly site.Reason for Change:To improve productivity by qualifying MG15F-35AB and MG15F-0140B as a new mold compound material at FSTS assembly site.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APT106N60B2C6&field4=Microchip&field18=https://p1na.futureelectronics.com/p/discretes--transistors--mosfets/apt106n60b2c6-microsemi-6034609
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APT106N60B2C6&field4=Microchip&field18=https://p1na.futureelectronics.com/p/discretes--transistors--mosfets/apt106n60b2c6-microsemi-6034609
Microchip APT106N60B2C6 - Technical Attributes
| Product Status: | Active |
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 600V |
| Drain-Source On Resistance-Max: | 35mΩ |
| Qg Gate Charge: | 308nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 106A |
| Turn-on Delay Time: | 25ns |
| Turn-off Delay Time: | 277ns |
| Rise Time: | 79ns |
| Fall Time: | 164ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 3V |
| Input Capacitance: | 8390pF |
| Series: | CoolMOS |
| Package Style: | T-MAX |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
1 per Tube
Package Style:
T-MAX
Mounting Method:
Through Hole
