Manufacturer Part #

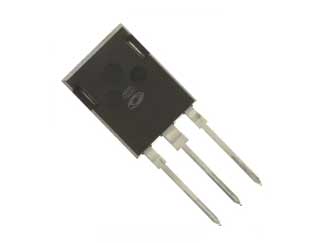

APT43M60B2
APT43M60 Series N Channel 600 Vds 45 A 150 mOhm 215 nC Mosfet - TO-247-3
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:TO-247-3 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Microchip APT43M60B2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
PCN Status:End of Life (EOL) NotificationEOL Description:The APT30F60J, APT43F60B2, APT43F60L, APT44GA60B, APT44GA60BD30, APT30M60J, APT43M60B2 and APT43M60L catalog part numbers (CPN) will be moving to End of Life (EOL) status effective today. These catalog part numbers will no longer be offered after October 01, 2025. Please review the attached parts affected list below for details about replacement parts if applicable.Note: If replacement parts are not listed in the attached list please contact your Local Sales RepresentativeReason for EOL:No longer have manufacturing support for the CPN listed in the attachment.Estimated Effective Dates:Customers affected by this EOL notice are advised to place last time buy (LTB) orders as follows:Last date for bookings (LTB): April 01, 2025Last date for shipments (LTS): October 01, 2025
PCN Status:Final NotificationDescription of Change:Qualification of MG15F-35AB and MG15F-0140B as a new mold compound material for various products available in TO-264, SOT-227 and TO-247 packages at FSTS assembly site.Reason for Change:To improve productivity by qualifying MG15F-35AB and MG15F-0140B as a new mold compound.Change Implementation Status:In ProgressEstimated First Ship Date:June 29, 2024 (date code: 2426)
PCN Status:Initial NotificationDescription of Change:Qualification of MG15F-35AB and MG15F-0140B as a new mold compound material for various products available in TO-264, SOT-227 and TO-247 packages at FSTS assembly site.Reason for Change:To improve productivity by qualifying MG15F-35AB and MG15F-0140B as a new mold compound material at FSTS assembly site.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APT43M60B2&field4=Microchip&field18=https://p1na.futureelectronics.com/p/discretes--transistors--mosfets/apt43m60b2-microsemi-2032112
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APT43M60B2&field4=Microchip&field18=https://p1na.futureelectronics.com/p/discretes--transistors--mosfets/apt43m60b2-microsemi-2032112
Microchip APT43M60B2 - Technical Attributes
| Product Status: | Not Recommended for New Designs |
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 600V |
| Drain-Source On Resistance-Max: | 150mΩ |
| Qg Gate Charge: | 215nC |
| Gate-Source Voltage-Max [Vgss]: | 30V |
| Drain Current: | 45A |
| Turn-on Delay Time: | 48ns |
| Turn-off Delay Time: | 145ns |
| Rise Time: | 55ns |
| Fall Time: | 44ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 4V |
| Input Capacitance: | 8590pF |
| Series: | POWER MOS 8™ |
| Package Style: | TO-247-3 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
50 per Tube
Package Style:
TO-247-3
Mounting Method:
Through Hole
