Manufacturer Part #
SI5948DU-T1-GE3

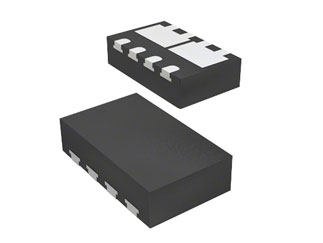

Dual N-Channel 40 V 82 mOhm 7 W TrenchFET Mosfet - PowerPAK ChipFET Dual
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Vishay | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2537 | ||||||||||
Vishay SI5948DU-T1-GE3 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change: To meet increasing demand with more flexibility for power MOSFETs, Vishay Siliconix announces the qualification of the new solder-plating site, Welnew-Shanghai, in Shanghai city, China. This full release of Welnew-Shnaghai applies to commercial product packages with copper lead-frame assembled in Simconix in Shanghai.Reason for Change: Manufacturing Capacity Expansion
Description of Change: .To meet increasing demand with more flexibility for power MOSFETs, Vishay Siliconix announces the qualification of the new solder-plating site, Welnew-Shanghai, in Shanghai city, China. This full release of Welnew-Shnaghai applies to commercial product packages with copper lead-frame assembled in Simconix in Shanghai.Welnew-Shanghai was founded in 2006 as a leading provider of Hall sensor products, semiconductor process service, and equipments.Welnew-Shanghai has achieved the certifications, including IATF-16949, ISO-9001, and ISO-14001.Reason for Change: Manufacturing Capacity Expansion
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SI5948DU-T1-GE3&field4=Vishay&field18=https://p1na.futureelectronics.com/p/discretes--transistors--mosfets/si5948du-t1-ge3-vishay-9090503
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SI5948DU-T1-GE3&field4=Vishay&field18=https://p1na.futureelectronics.com/p/discretes--transistors--mosfets/si5948du-t1-ge3-vishay-9090503
Vishay SI5948DU-T1-GE3 - Technical Attributes
| Fet Type: | N-Ch |
| No of Channels: | 2 |
| Drain-to-Source Voltage [Vdss]: | 40V |
| Drain-Source On Resistance-Max: | 82mΩ |
| Rated Power Dissipation: | 2W |
| Qg Gate Charge: | 3.3nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 3.7A |
| Turn-on Delay Time: | 5ns |
| Turn-off Delay Time: | 7ns |
| Rise Time: | 25ns |
| Fall Time: | 10ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 2.5V |
| Input Capacitance: | 165pF |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
3000 per Reel
Mounting Method:
Surface Mount
