Manufacturer Part #
0314020.HXP

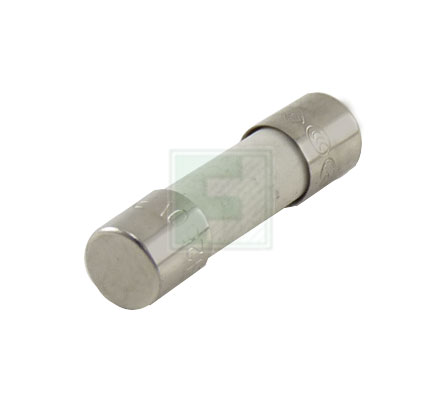

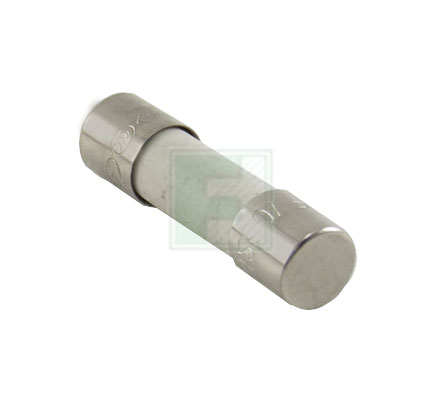

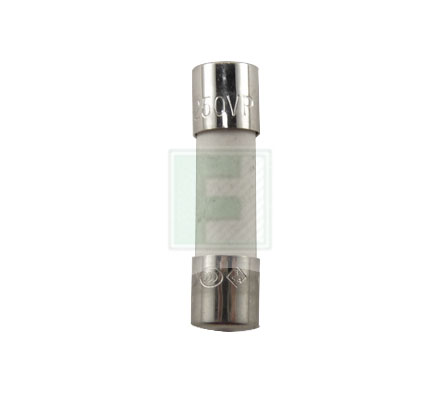

314 Series Fast-Acting 250 V 20 A Ø 6.35 x 31.75 mm Ceramic Cartridge Fuse
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Bag Package Style:CARTRIDGE | ||||||||||
| Date Code: | 2510 | ||||||||||
Littelfuse 0314020.HXP - Product Specification
Shipping Information:
ECCN:
PCN Information:
This customer notification refers to a cosmetic change on the labels. No changes to form, fit and function of the affected fuses. With regards to the above reference, there will be an additional marking added to the labels of the affected fuses. Products affected are all fuses with CE mark on labels on the packaging and carton boxes. This change is only the addition of the below marking to the label and does not impact form, fit and function of the fuse itself.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=0314020.HXP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--electronic-fuses/0314020-hxp-littelfuse-4679122
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=0314020.HXP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--electronic-fuses/0314020-hxp-littelfuse-4679122
Littelfuse 0314020.HXP - Technical Attributes
| Voltage Rating: | 250V |
| Rated Voltage (VAC): | 250VAC |
| Response Characteristic: | Fast-Acting |
| Current Rating: | 20A |
| Resistance: | 0.00355Ω |
| Interrupting Rating: | 1000A |
| Operating Temp Range: | -55°C to +125°C |
| Typical Melting I2t (A2sec): | 631A |
| Dimension: | L 31.75mm x D 6.35mm |
| Package Style: | CARTRIDGE |
Available Packaging
Package Qty:
100 per Bag
Package Style:
CARTRIDGE
