Manufacturer Part #
0324015.MXP

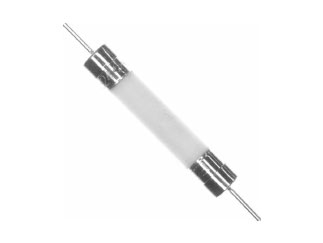

FUSE 250V FA PT 3AB Pb-FREE 15A
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bulk Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Littelfuse 0324015.MXP - Product Specification
Shipping Information:
ECCN:
PCN Information:
This customer notification refers to a cosmetic change on the labels. No changes to form, fit and function of the affected fuses. With regards to the above reference, there will be an additional marking added to the labels of the affected fuses. Products affected are all fuses with CE mark on labels on the packaging and carton boxes. This change is only the addition of the below marking to the label and does not impact form, fit and function of the fuse itself.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=0324015.MXP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--electronic-fuses/0324015-mxp-littelfuse-7066760
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=0324015.MXP&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--electronic-fuses/0324015-mxp-littelfuse-7066760
Littelfuse 0324015.MXP - Technical Attributes
| Voltage Rating: | 125V |
| Rated Voltage (VAC): | 250VAC |
| Response Characteristic: | Fast-Acting |
| Current Rating: | 15A |
| Resistance: | 0.00505Ω |
| Operating Temp Range: | -55°C to +125°C |
| Typical Melting I2t (A2sec): | 292A |
| Dimension: | L 32.72mm x D 6.99mm |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
1000 per Bulk
Mounting Method:
Through Hole
