Manufacturer Part #
SP0504BAHTG

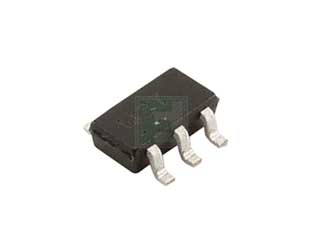

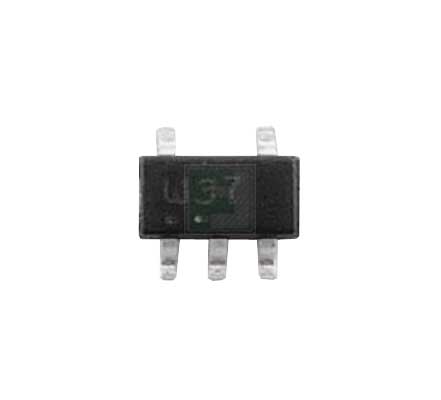

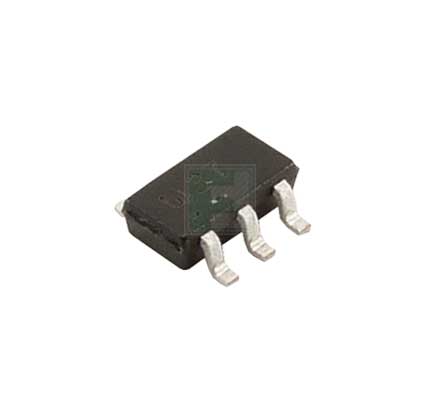

SP050xBA Series 8 V 30 pF Uni-Directional SMT TVS Avalanche Diode Array SOT-23-5
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:SOT-23-5 (SOT-25) Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2508 | ||||||||||
Product Specification Section
Littelfuse SP0504BAHTG - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Multiple Change Notification
02/07/2025 Details and Download
Assembly Site Change
08/01/2022 Details and Download
Littelfuse would like to notify you of an additional approved backend location for SOT23-5L/6L TVS Diode Array (SPA? Diodes) products. This additional backend factory in China is fully approved for all assembly, test, and packing operations. There are no changes to fit, form, and function of the finished products.Effective date: October 29th, 2022 or sooner
Part Status:
Active
Active
Littelfuse SP0504BAHTG - Technical Attributes
Attributes Table
| No of Channels: | 4 |
| Directional: | Uni-Directional |
| Clamping Voltage-Max: | 8V |
| Standoff Voltage: | 5.5V |
| Capacitance: | 30pF |
| Operating Temp Range: | -40°C to +85°C |
| ESD Voltage-Max: | ±30kV |
| Rated Power: | 0.225W |
| Leakage Current: | 100nA |
| Storage Temperature Range: | -65°C to +150°C |
| Package Style: | SOT-23-5 (SOT-25) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
27,000
USA:
27,000
Factory Lead Time:
11 Weeks
Quantity
Unit Price
3,000
$0.315
9,000+
$0.31
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
SOT-23-5 (SOT-25)
Mounting Method:
Surface Mount
