Manufacturer Part #
V20E460PL1T1

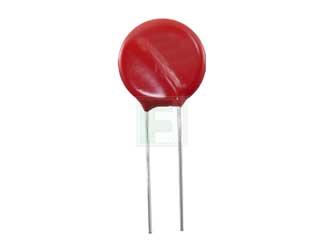

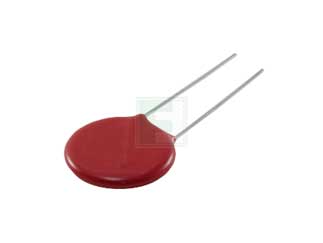

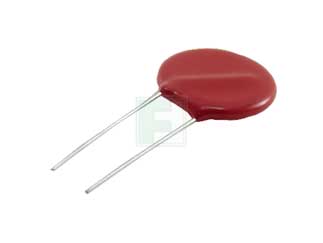

UltraMOV® Series 615VDC 460V RMS 1240V Clamp 400 pF Radial Metal Oxide Varistor
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:400 per Reel Package Style:RADIAL Mounting Method:Through Hole |
||||||||||
| Date Code: | |||||||||||
Littelfuse V20E460PL1T1 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Description:Per LFPCN# 41497, UltraMOV? Varistor Series inner electrode was changed from Ag to Cu from April 2024. Due to current Cu electrode production capacity limitation, we will resume Ag electrode production for UltraMOV? Varistor Series from September 14th, 2024. During the change transition period, customers are expected to receive both Cu and Ag products until Cu products inventory in Littelfuse warehouse and distribution channels are depleted.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V20E460PL1T1&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--varistors-mov-mlv/v20e460pl1t1-littelfuse-3848181
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=V20E460PL1T1&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--varistors-mov-mlv/v20e460pl1t1-littelfuse-3848181
Littelfuse V20E460PL1T1 - Technical Attributes
| Capacitance: | 400pF |
| Clamping Voltage-Max: | 1240V |
| Peak Output Current: | 10000A |
| Rated Voltage: | 615V |
| RMS Voltage-Max: | 460V |
| Varistor Voltage Range: | 675V to 825V |
| Current Rating: | 1mA |
| Energy: | 360J |
| Insulation Resistance: | 1000MΩ |
| Operating Temp Range: | -65°C to +85°C |
| Storage Temperature Range: | -55°C to +125°C |
| No of Terminals: | 2 |
| Diameter: | 20mm |
| Package Style: | RADIAL |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
400 per Reel
Package Style:
RADIAL
Mounting Method:
Through Hole
