Manufacturer Part #
SDR-240-24

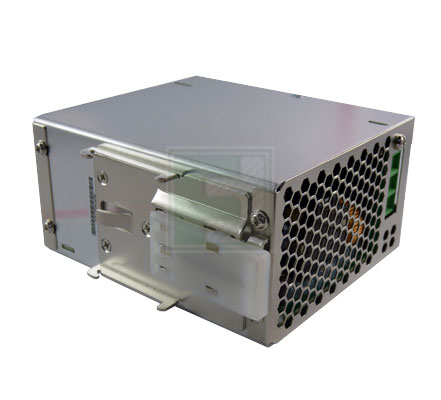

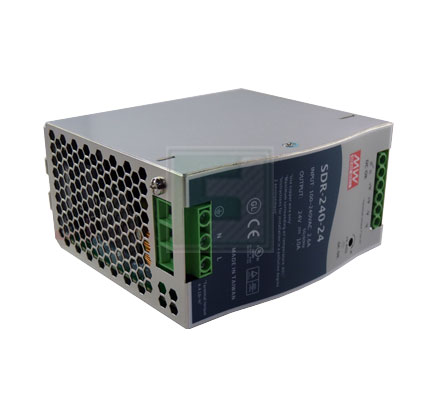

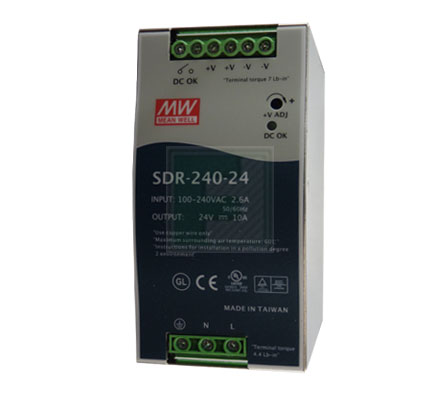

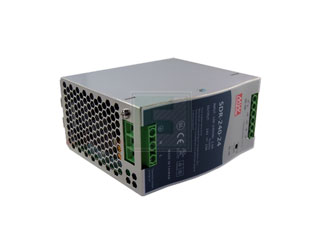

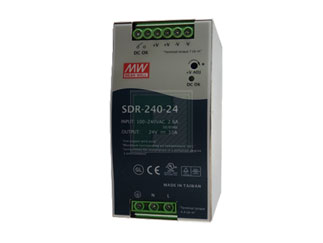

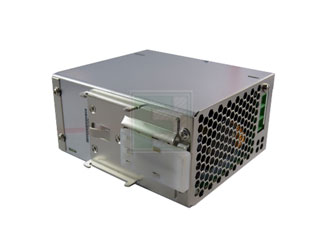

SDR-240 Series 240 W Single Output 24 V AC/DC Industrial DIN Rail w/PFC Function
| | |||||||||||
| | |||||||||||
| Mfr. Name: | MEAN WELL | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box Mounting Method:DIN Rail Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
MEAN WELL SDR-240-24 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SDR-240-24&field4=MEAN WELL&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--ac-dc/sdr-240-24-mean-well-8003180
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SDR-240-24&field4=MEAN WELL&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--ac-dc/sdr-240-24-mean-well-8003180
-
MEAN WELL SDR-240-24 - Technical Attributes
Attributes Table
| Type: | Din Rail |
| No of Outputs: | Single |
| Output Power: | 240W |
| Output Voltage: | 24V |
| Input Voltage: | 124V to 370V |
| Input Voltage (VAC): | 88VAC to 264VAC |
| Ripple & Noise: | 50mV |
| Load Regulation (%): | 1% |
| Switching Frequency-Max: | 63Hz |
| Operating Temp Range: | -25°C to +70°C |
| Mounting Method: | DIN Rail Mount |
Features & Applications
The SDR-240-24 is a part of SDR series single output short circuit protection AC/DC switch power supply.
Features:
- High efficiency 94% and low power dissipation.
- 150% peak load capability
- Built-in active PFC function, PF>0.93
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full load burn-in test
- 3 years warranty
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$98.91
2
$97.47
3
$96.64
4
$96.05
5+
$94.20
Product Variant Information section
Available Packaging
Package Qty:
1 per Box
Mounting Method:
DIN Rail Mount
